  8. Hikvision DS-2CD2T67G2P-LSU/SL
Hikvision DS-2CD2T67G2P-LSU/SL View larger

Hikvision DS-2CD2T67G2P-LSU/SL

DS-2CD2T67G2P-LSU/SL

New product

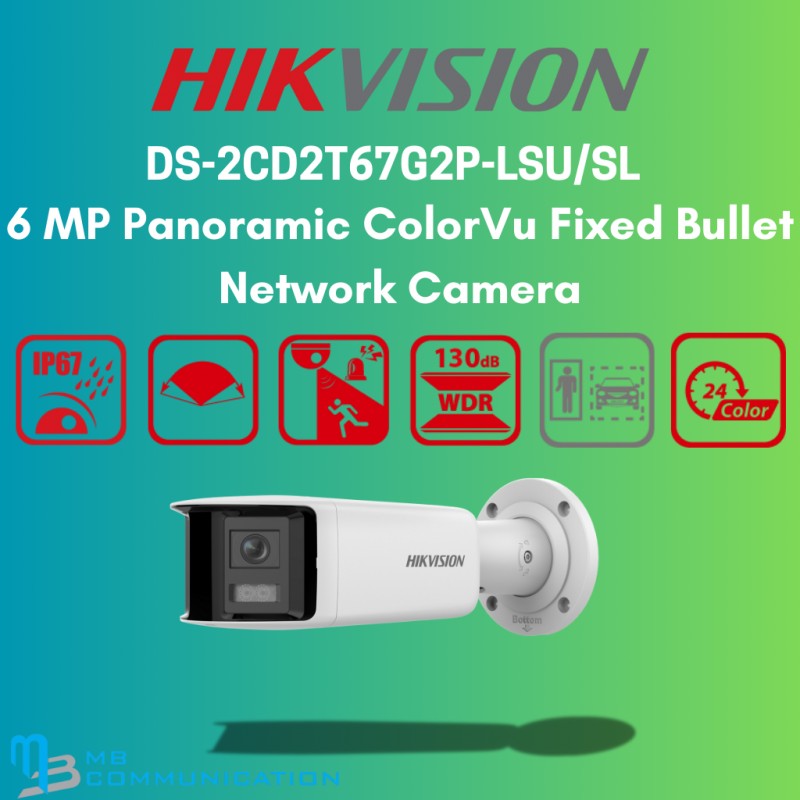

6 MP Panoramic ColorVu Fixed Bullet Network Camera

  • High quality imaging with 6 MP resolution
  • One image that presents all the scenes covered by the camera
  • 24/7 colorful imaging
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 130 dB WDR technology

More details

In Stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD2T67G2P-LSU/SL Features and Benefits

Features:

Hikvision DS-2CD2T67G2P-LSU/SL Description

CategorySpecification
Camera
Image Sensor 2 × 1/2.5" Progressive Scan CMOS
Max. Resolution 3632 × 1632
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0°–355°, Tilt: 0°–90°, Rotate: 0°–360°
Lens
Type Fixed focal dual lens
Focal Length & FOV 2.8 mm, HFOV: 180°, VFOV: 81°
Lens Mount M12
Iris Fixed
Aperture F1.0
Depth of Field 2 m – ∞
DORI Detect: 45 m, Observe: 17.5 m, Recognize: 9 m, Identify: 4.5 m
Illuminator
Supplement Light Type White Light
Range Up to 40 m
Smart Supplement Yes
Video
Main Stream 20 fps @ 3632 × 1632 (50/60 Hz)
Sub Stream 20 fps @ 1200 × 536 / 960 × 432
Compression H.265+/H.265/H.264+/H.264, MJPEG
Bit Rate 32 Kbps – 16 Mbps
ROI 1 fixed region (main stream)
Audio
Type Mono sound
Compression G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Bit Rate 8 Kbps – 320 Kbps (codec dependent)
Sampling Rate 8 kHz – 48 kHz
Noise Filtering Yes
Network
Protocols TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, RTSP, SMTP, SNMP, IPv6, QoS, SSL/TLS, PPPoE, Websocket/Websockets etc.
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S/G/T), ISAPI, SDK
Users Up to 32 (Admin/Operator/User)
Security Password, HTTPS, 802.1X, TLS 1.2, IP Filter, Watermark, Audit log
Network Storage NAS (NFS, SMB/CIFS), ANR, encrypted memory card support
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser IE 10/11 (plugin), Chrome 57+, Firefox 52+, Edge 89+
Settings Saturation, Brightness, Contrast, Sharpness, Gain, WB
Day/Night Switch Day/Night/Auto/Schedule
WDR 130 dB
SNR ≥ 52 dB
Enhancement BLC, HLC, 3D DNR
Privacy Mask 8 rectangular masks
Interface
Ethernet 1 RJ45 10M/100M self-adaptive port
On-board Storage microSD/SDHC/SDXC up to 256 GB (encrypted)
Built-in Mic/Speaker Yes (Speaker: 97 dB @ 10 cm, 1 W)
Audio I/O 1 input, 1 output (terminal block)
Alarm I/O 1 input, 1 output (max. 24VDC/24VAC, 1A)
Reset Key Yes
Events
Basic Motion detection, alarm I/O, light/alarm output
Smart Line crossing, intrusion, region entrance/exit, scene change (human/vehicle filter)
Linkage FTP/NAS upload, email, alarm out, recording, capture, audible warning, white light flash
General
Power 12 VDC ±25% (10.5 W max) / PoE 802.3af Class 3 (12.5 W max)
Material Metal (front cover, body, bracket)
Dimensions 118.6 × 105.1 × 306.5 mm
Package Dimension 405 × 190 × 180 mm
Weight 1400 g (net), 2100 g (with package)
Storage Temp -30 °C to 60 °C, ≤95% RH (non-condensing)
Operating Temp -30 °C to 60 °C, ≤95% RH (non-condensing)
Languages 33 (English, Russian, German, French, Spanish, Turkish, Chinese, etc.)
General Functions Anti-banding, heartbeat, flash log, pixel counter
Flashing Light Yes
Approvals
EMC FCC Part 15, CE-EMC, RCM, ICES-003
Safety UL/IEC/EN 62368-1
Environment CE-RoHS, WEEE, Reach
Protection IP67
