  8. Hikvision DS-2CD1083G2-LIUF/SL
Hikvision DS-2CD1083G2-LIUF/SL View larger

Hikvision DS-2CD1083G2-LIUF/SL

DS-2CD1083G2-LIUF/SL

New product

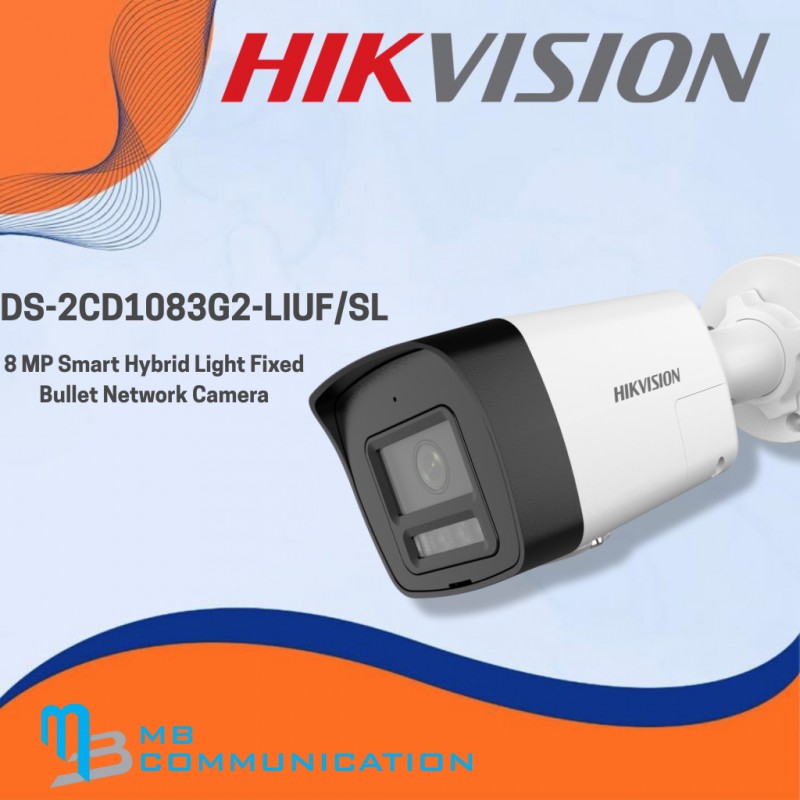

8 MP Smart Hybrid Light Fixed Bullet Network Camera

  • High quality imaging with 8 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology

More details

In Stock

Whatsapp MB WhatsApp

Rs 20,280

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1083G2-LIUF/SL Features and Benefits

Features:

Hikvision DS-2CD1083G2-LIUF/SL Description

CategorySpecification
Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON); B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°
Lens Type Fixed focal lens, 2.8 mm & 4 mm optional
FOV (2.8 mm) H: 113°, V: 62°, D: 134°
FOV (4 mm) H: 90°, V: 49°, D: 108°
Lens Mount M12
Aperture F2.0
DORI (2.8 mm) D: 79 m, O: 31 m, R: 15 m, I: 7 m
DORI (4 mm) D: 102 m, O: 40 m, R: 20 m, I: 10 m
Supplement Light IR & White Light
Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream (50Hz) 12.5 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
Main Stream (60Hz) 15 fps (same resolutions)
Sub-Stream (50Hz) 12.5 fps (1280×720, 640×480, 640×360)
Sub-Stream (60Hz) 15 fps (same resolutions)
Video Compression H.265+/H.265/H.264+/H.264 (main), H.265/H.264/MJPEG (sub)
Bit Rate 32 Kbps–16 Mbps (CBR/VBR)
Profiles H.264: Baseline/Main/High; H.265: Main
ROI 1 fixed region (main stream)
Audio Type Mono sound
Audio Sampling 8 kHz/16 kHz
Noise Filtering Yes
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711), 16–64 Kbps (AAC-LC), others supported
Network Security Password protection, HTTPS authentication, watermark, MAC auth, audit log
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S/T/G), ISAPI, SDK
Protocols TCP/IP, DHCP, DNS, HTTP, RTP/RTSP, NTP, IGMP, IPv6, UDP, FTP, SMTP, UPnP, QoS
User/Host Up to 32 users; admin/operator/user roles
Client Software iVMS-4200, Hik-Connect
Web Browser IE10/11 (plugin), Chrome 57+, Firefox 52+, Edge 89+
WDR 120 dB
SNR ≥ 52 dB
Day/Night Switch Auto, Schedule, Day, Night
Image Enhancements BLC, HLC, 3D DNR
Image Settings Rotate, saturation, brightness, contrast, sharpness, gain, WB
Privacy Mask 4 programmable polygon masks
Ethernet Interface 1 RJ45 10/100M self-adaptive
Onboard Storage microSD/microSDHC/microSDXC up to 512 GB
Built-in Mic Yes
Built-in Speaker 1.5 W, 95 dB SPL @10 cm
Reset Key Yes
Basic Events Motion detection (human/vehicle), tampering, exception
Event Linkage FTP/NAS upload, center notify, email, recording, capture, audible warning, flashing light
Power Supply 12 VDC ±25% (0.66 A, max 8 W), PoE IEEE 802.3af Class 3 (max 9.5 W)
Material Metal & Plastic
Dimensions 179×67.4×69.1 mm (7.1"×2.7"×2.7")
Package Dimensions 216×121×118 mm (8.5"×4.8"×4.6")
Weight Net: ~285 g (0.6 lb), Package: ~490 g (1.1 lb)
Storage Conditions -30°C to 60°C (-22°F to 140°F), ≤95% RH (non-condensing)
Startup/Operating Conditions Same as storage
Languages English, Ukrainian
General Functions Heartbeat, anti-banding, mirror, password protection/reset
Flashing Light Yes
Approvals (EMC) CE-EMC, RCM, ICES-003
Approvals (Safety) UL, CB, CE-LVD, BIS
Environmental CE-RoHS, WEEE, Reach
Protection IP67 (IEC 60529-2013)
