Hikvision DS-2CD1T83G2-LIUF/SL View larger

Hikvision DS-2CD1T83G2-LIUF/SL

DS-2CD1T83G2-LIUF/SL

New product

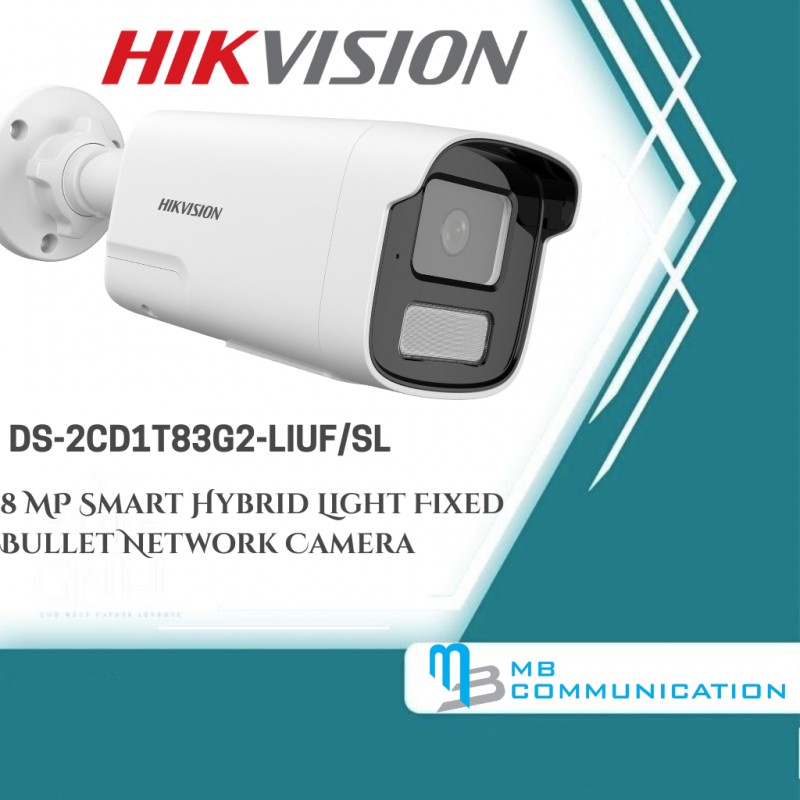

8 MP Smart Hybrid Light Fixed Bullet Network Camera

  • High quality imaging with 8 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology

More details

In Stock

Whatsapp MB WhatsApp

Rs 20,280

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1T83G2-LIUF/SL Features and Benefits

Features:

Hikvision DS-2CD1T83G2-LIUF/SL Description

CategorySpecification
Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–180°, Rotate: 0°–360°
Lens Type Fixed focal lens, 4 mm & 6 mm optional
Focal Length & FOV 4 mm: HFOV 90°, VFOV 49°, DFOV 108°; 6 mm: HFOV 56°, VFOV 30°, DFOV 65°
Iris Type Fixed
Lens Mount M12
Aperture F2.0
DORI (4 mm) D: 102 m, O: 40 m, R: 20 m, I: 10 m
DORI (6 mm) D: 170 m, O: 67 m, R: 34 m, I: 17 m
Supplement Light Range Up to 50 m
Smart Supplement Light Yes
Light Type IR & White Light, 850 nm
Main Stream 50Hz: 12.5 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720); 60Hz: 15 fps (same resolutions)
Sub Stream 50Hz: 12.5 fps (1280×720, 640×480, 640×360); 60Hz: 15 fps (same)
Video Compression H.265+/H.265/H.264+/H.264, MJPEG
Video Bitrate 32 Kbps–16 Mbps, CBR/VBR
Audio Compression G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
Audio Bitrate 64 Kbps (G.711)/16–64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz / 16 kHz
Audio Type Mono, with environment noise filtering
Network Interfaces 1×RJ45 10M/100M Ethernet, Reset key
Browser Support IE10/11 (plug-in), Chrome 57+, Firefox 52+, Edge 89+
Client Software iVMS-4200, Hik-Connect
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
User Levels Up to 32 users (Admin, Operator, User)
Image Enhancements BLC, HLC, 3D DNR, 120 dB WDR
Privacy Mask 4 programmable polygon masks
On-board Storage microSD/microSDHC/microSDXC up to 512 GB
Built-in Mic/Speaker Yes (mic), Speaker: Max. 1.5W, 95 dB at 10cm
Event Functions Motion detection (human/vehicle), video tampering, exception alarms
Linkage FTP/NAS upload, email, audible warning, flashing light, etc.
Power Supply 12 VDC ±25%, 0.75A max 9W; PoE IEEE 802.3af Class 3 max 10.5W
Material Metal & Plastic
Dimensions 83.7 × 80.7 × 221.1 mm (3.3" × 3.2" × 8.7")
Package Dimension 260 × 125 × 125 mm (10.2" × 4.9" × 4.9")
Weight 410 g (0.9 lb), with package: 669 g (1.5 lb)
Operating Temp -30°C to 60°C (-22°F to 140°F), Humidity ≤95% non-condensing
Protection IP67 (IEC 60529-2013)
Certifications (EMC) CE-EMC, RCM, ICES-003 Issue 7
Certifications (Safety) UL 62368-1, CB IEC 62368-1:2014, CE-LVD EN 62368-1:2014/A11:2017, BIS
Environmental Approvals CE-RoHS, WEEE, Reach
General Functions Heartbeat, anti-banding, mirror, password reset via email, flashing light
