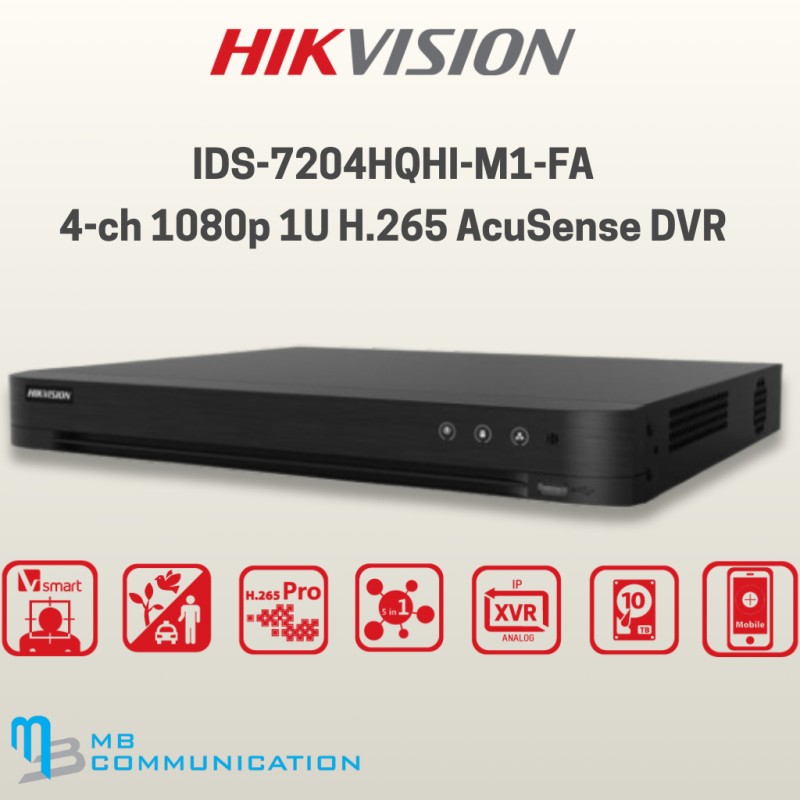

Hikvision IDS-7204HQHI-M1-FA

4-ch 1080p 1U H.265 AcuSense DVR

• 4 channels and 1 HDD 1U AcuSense DVR
• Supports facial recognition or false alarm reduction based on deep learning algorithm
• Supports face picture comparison and face picture search
• Up to 16 face picture libraries, with up to 500 face pictures in total
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 6 network cameras can be connected

Specification

• Facial Recognition
• Face Picture Comparison: Face picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera)
• Face Picture Library: Up to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Perimeter Protection
• Human/Vehicle Analysis: Up to 2-ch

• Recording
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  Main stream:

  When 1080p lite mode not enabled:

  For 4 MP stream access:

  4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps

  For 1080p stream access:

  1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  When 1080p Lite mode enabled:

  4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

• Video Bitrate: 32 Kbps to 6 Mbps
• Dual-Stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate64 Kbps

• Video And Audio
• IP Video Input

  1-ch (up to 5-ch)

  Enhanced IP mode on:

  2-ch (up to 6-ch), each up to 4 Mbps

  Up to 6 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  4-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input: 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/FA.
• AHD Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS Input: PAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• HDMI Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

  1024 × 768/60Hz, HDMI/VGA simultaneous output

• VGA Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

  1024 × 768/60Hz, HDMI/VGA simultaneous output

• Audio Input

  1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

  4-ch via coaxial cable

• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback: 4-ch

• Network
• Remote Connection: 32
• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

• Auxiliary Interface
• SATA: 1 SATA interface, up to 10 TB capacity for each disk
• Serial Interface: RS-485 (half-duplex)
• USB Interface

  Front panel: 1 × USB 2.0;

  Rear panel: 1 × USB 2.0

• Alarm In/OutN/A (optional to support)

• General
• Power Supply: 12 VDC, 1.5 A
• Consumption: ≤ 18 W
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• ≤ 1.16 kg (2.6 lb)
