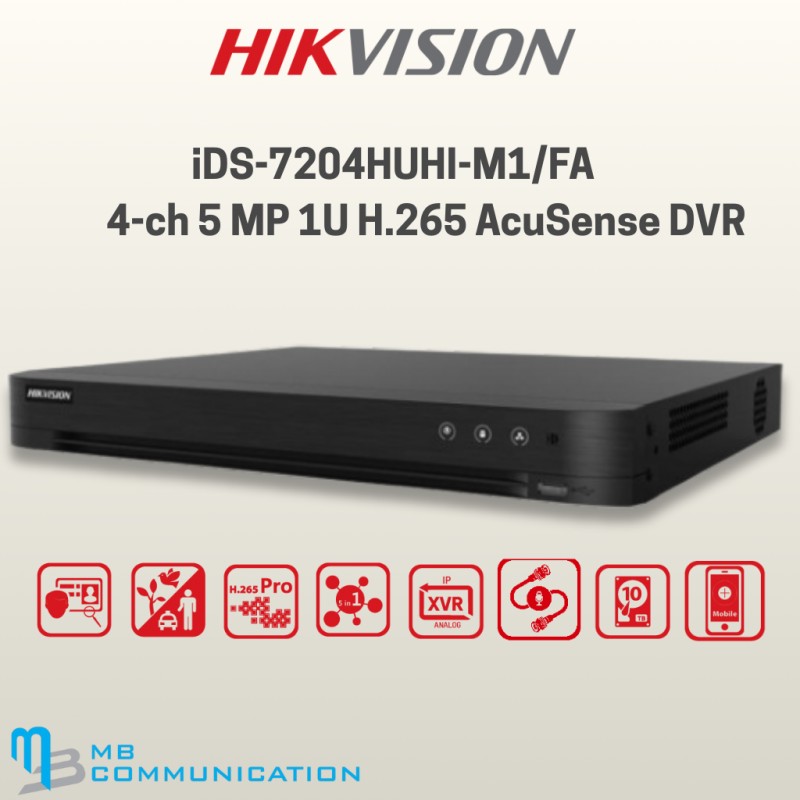

Hikvision IDS-7204HUHI-M1-FA

Specification

• Smart Analysis
• Facial Detection And Capture: Face picture comparison and face picture search

• Face Picture Library: Up to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)

• Face Picture Comparison: 1-ch face picture comparison alarm (HD analog camera)


• Human/Vehicle Analysis
• False Alarm Reduction: Up to 4-ch

• Recording
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

• Encoding Resolution

  Main stream:

  8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  *: 8 MP@8 fps is only available for channel 1.

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate: 32 Kbps to 10 Mbps

• Dual Stream: Support

• Stream Type: Video, Video & Audio

• Audio Compression: G.711u

• Audio Bitrate: 64 Kbps

• Video And Audio
• IP Video Input

  2-ch (up to 6-ch)

  Up to 8 MP resolution

  IP enhanced mode on:

  4-ch (up to 8-ch), each up to 4 Mbps

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  4-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input

  8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

  *: The 8 MP signal input is only available for channel 1.

• AHD Input: 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS Input: PAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• VGA Output

  1-ch, 1920 × 1080/60Hz,

  1280 × 1024/60Hz,

  1280 × 720/60Hz,

  1024 × 768/60Hz

  HDMI/VGA simultaneous output

• HDMI Output

  1-ch, 2K (2560 × 1440)/60Hz,

  1920 × 1080/60Hz,

  1280 × 1024/60Hz,

  1280 × 720/60Hz,

  1024 × 768/60Hz

  HDMI/VGA simultaneous output

• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback: 4-ch

• Network
• Remote Connection: 32
• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• SATA: 1 SATA interface
• Capacity: up to 10 TB capacity for each disk
• Serial Interface: RS-485 (half-duplex)
• USB Interface

  Front panel: 1 × USB 2.0;

  Rear panel: 1 × USB 2.0

• Alarm In/Out: N/A

• General
• Power Supply: 12 VDC, 1.5 A
• Consumption(Without HDD): ≤ 10 W
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Weight (Without HDD): ≤ 1.16 kg (2.6 lb)
