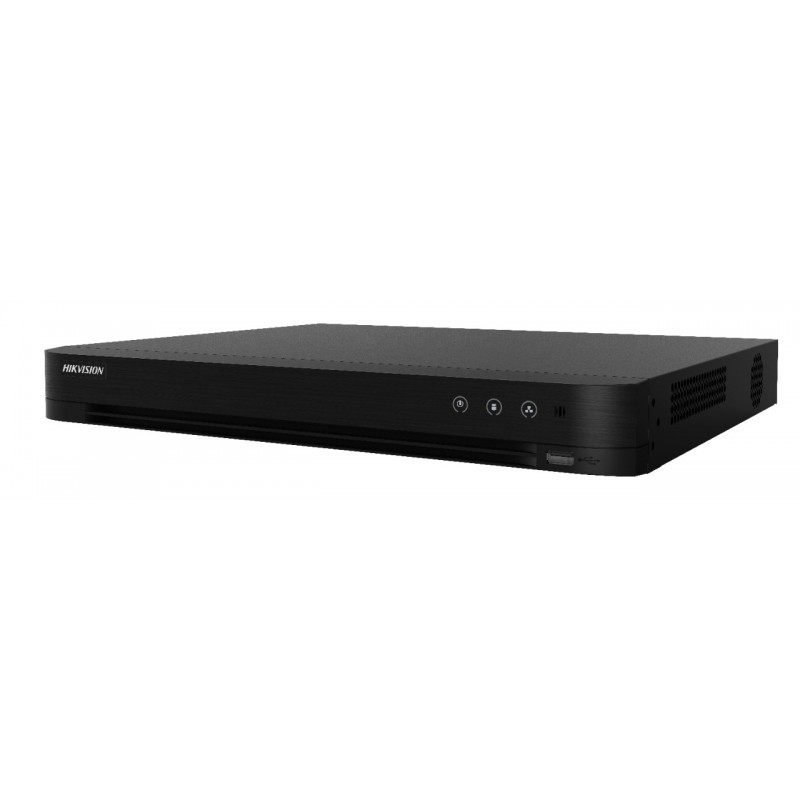

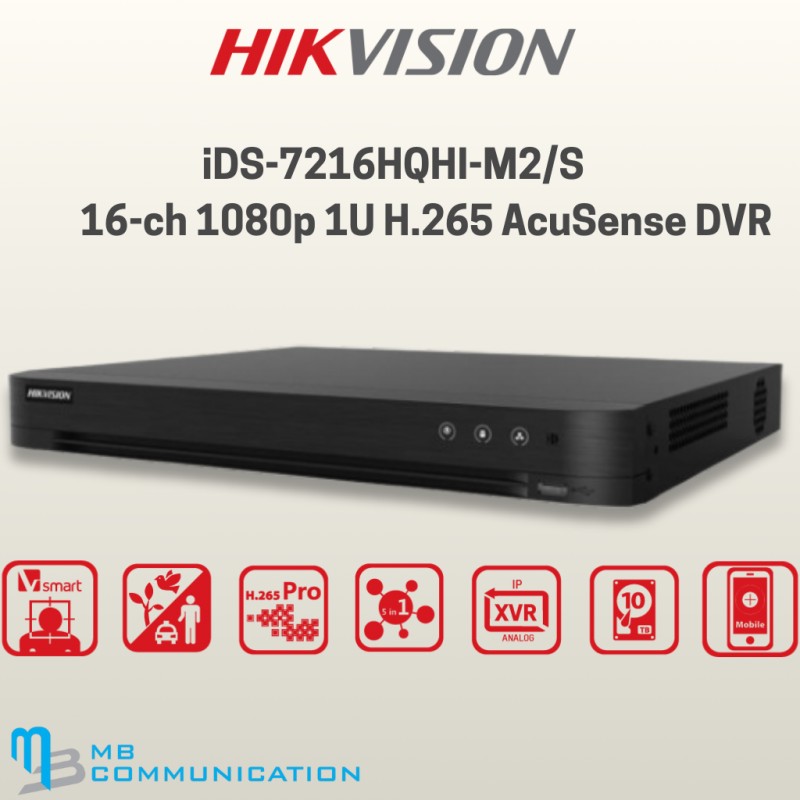

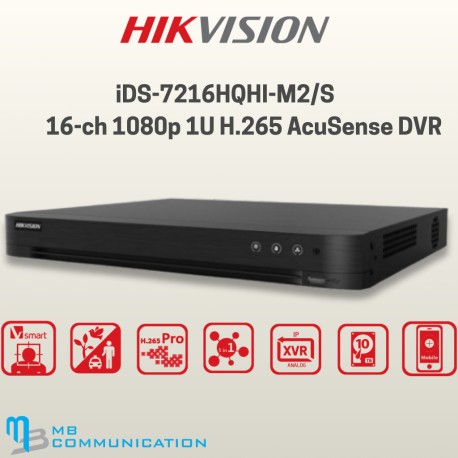

Hikvision IDS-7216HQHI-M2-S

16-ch 1080p 1U H.265 AcuSense DVR.

• 16 channels and 2 HDDs 1U AcuSense DVR
• Provides detailed information with face detection
• False alarm reduction through human and vehicle target classification based on deep learning
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 8 network cameras can be connected

Specification

• Recording
• Encoding Resolution

  Main stream:

  When 1080p Lite mode is not enabled:

  For 4 MP stream access:

  4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps

  For 1080p stream access:

  1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  When 1080p Lite mode is enabled:

  4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

• Video Bit Rate: 32 Kbps to 6 Mbps
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Dual Stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bit Rate: 64 Kbps

• Video And Audio
• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Synchronous Playback: 16-ch
• IP Video Input: 4-ch (Up to 12-ch); Support H.265+/H.265/H.264+/H.264 IP cameras
• HDTVI Input

  3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

  *: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7216HQHI-M2/S.

• HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS Input: PAL/NTSC
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Analog Video Input: 16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• HDMI/VGA Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

  1024 × 768/60Hz, HDMI/VGA simultaneous output

• Network
• Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connections: 128
• Network Interface

  1,RJ45 10M/100M/1000M self-adaptive

  Ethernet interface

• Auxiliary Interface
• Capacity: Up to 10 TB capacity for each disk
• Serial Interface: RS-485 (half-duplex)
• USB Interface

  1 × USB 2.0;

  1 × USB 3.0

• Alarm In/Out: N/A
• SATA: 2 SATA interface

• General
• Consumption(Without HDD): ≤ 40 W
• Working Humidity: 10% to 90%
• Power Supply: 12 VDC
• Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
• Dimensions (W × D × H): 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weights (Without HDD): ≤ 2 kg (4.4 lbs)
