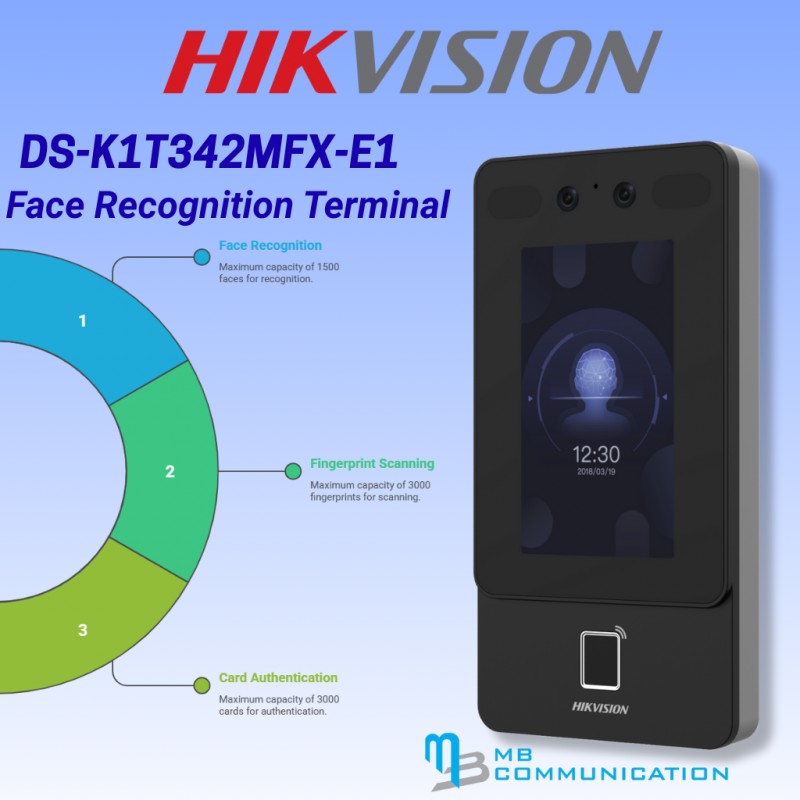

Hikvision DS-K1T342MFX-E1
Face Recognition Terminal
- Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1 card reading module
- Two-way audio with client software, indoor station, and main station; Supports TCP/IP
- Supports ISAPI, ISUP5.0
- Configuration via the web client
Rating:
Be the first to write a review!
- 100% genuine, brand-new stock
- Delivered across Pakistan
- Showroom: TechnoCity, Karachi
- Bulk & corporate pricing on request
More info
Hikvision DS-K1T342MFX-E1 overview
| Category | Parameter | Specification |
|---|---|---|
| System | Operation system | Linux |
| Display dimensions | 4.3-inch | |
| Resolution | 272 × 480 | |
| Type | LCD | |
| Operation method | Capacitive touch screen | |
| Video | Pixel | 2 MP |
| Lens | × 2 | |
| Video standard | PAL (Default) and NTSC | |
| Network | Wired network | 10 M/100 M self-adaptive |
| Interface | PoE | IEEE802.3at, standard PoE |
| Network interface | 1 | |
| RS-485 | 1 | |
| Wiegand | 1 | |
| Lock output | 1 | |
| Exit button | 1 | |
| Door contact input | 1 | |
| Tamper | 1 | |
| USB | 1 | |
| Capacity | Card capacity | 3,000 |
| Face capacity | 1,500 | |
| Fingerprint capacity | 3,000 | |
| Event capacity | 150,000 | |
| Authentication | Card type | M1 card |
| Card reading frequency | 13.56 MHz | |
| Face recognition duration | ＜ 0.2 s | |
| Face recognition accuracy rate | ＞99% | |
| Face recognition distance | 0.3 to 1.5 m | |
| Fingerprint recognition duration | ＜1 s | |
| General | Power supply | Power input: Power interface (adapter 12 VDC/1 A) or PoE (37–57 VDC/0.6 A)Power output: 12 VDC/1 A (only when powered by PoE supporting powering supply for door lock) |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) | |
| Working humidity | 0 to 90% (Non-condensing) | |
| Dimensions | 91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96") | |
| Installation | Wall Mounting | |
| Protective level | IP65 | |
| Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean | |
| Gross weight | 0.93 kg (2.05 lbs) | |
| Net weight | 0.36 kg (0.79 lbs) | |
| Function | Face anti-spoofing | Support |
| Audio prompt | Support | |
| Time synchronization | Support |
