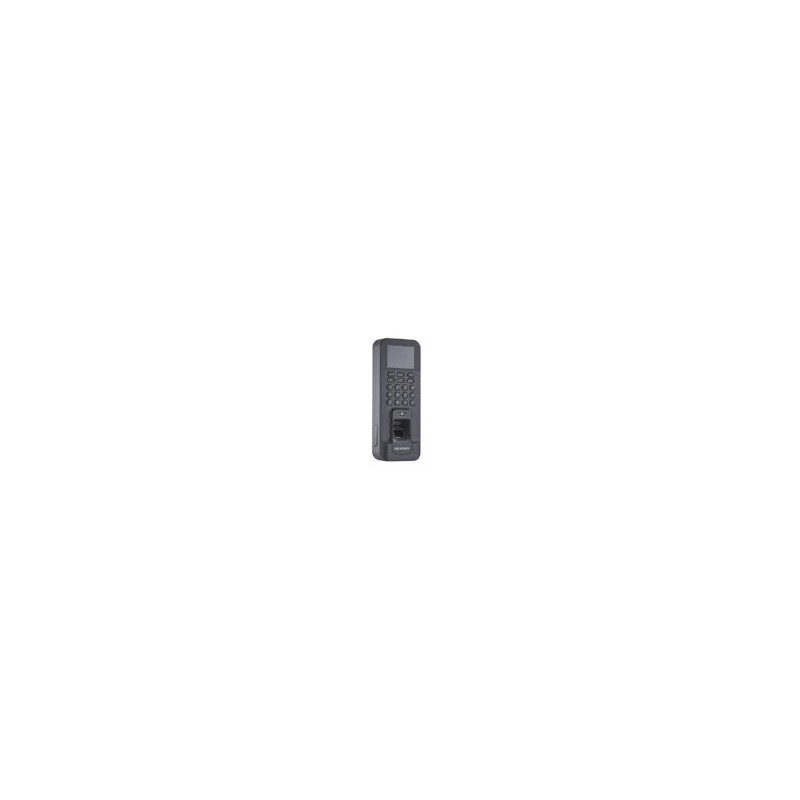

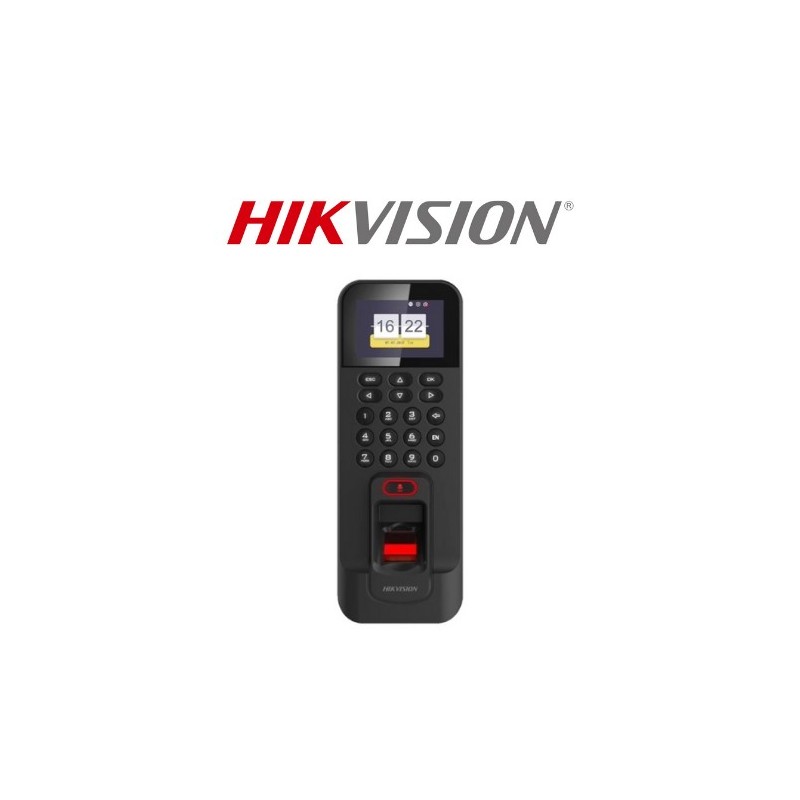

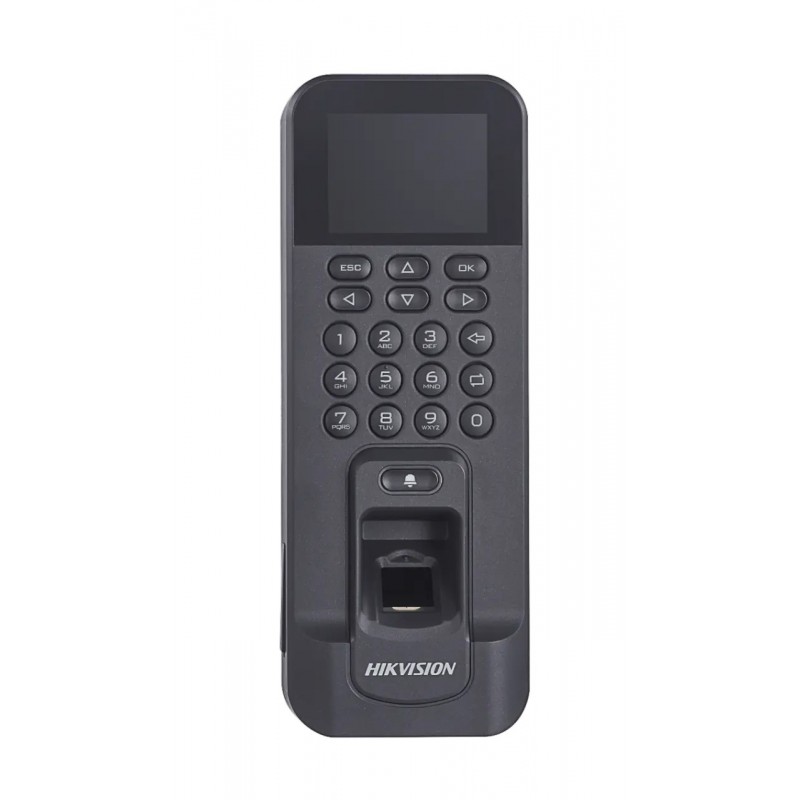

Hikvision DS-K1T804AMF
K1T804A Pro Series Fingerprint Terminal
- Integrated management of access control and the time and attendance functions
- 3,000 fingerprints, 3,000 cards and 100,000 events storage
- Built-in card reader for Mifare1 card
- Communication via TCP/TP and Wi-Fi
- RS-485, wiegand interface
- Alarm input and output interface
Rating:
Be the first to write a review!
- 100% genuine, brand-new stock
- Delivered across Pakistan
- Showroom: TechnoCity, Karachi
- Bulk & corporate pricing on request
More info
Hikvision DS-K1T804AMF overview
Hikvision DS-K1T804AMF - K1T804A Pro Series Fingerprint Terminal.
Key Features
- Integrated management of access control and the time and attendance functions
- 3,000 fingerprints, 3,000 cards and 100,000 events storage
- Built-in card reader for Mifare1 card
- Communication via TCP/TP and Wi-Fi
- RS-485, wiegand interface
- Alarm input and output interface
- ISUP5.0, ISAPI
Specifications
| Display | |
|---|---|
| Screen size | 2.4-inch |
| Resolution | 320 × 240 |
| Type | LCD-TFT display screen |
| Audio | |
| Audio output | 1 loudspeaker, 1 buzzer |
| Network | |
| Wired network | TCP/IP, 10/100Mbps, self-adaptive |
| Wi-Fi | Support |
| Interface | |
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Alarm input | 1 |
| Alarm output | 1 |
| TAMPER | 1 |
| USB | 1 |
| Capacity | |
| Card capacity | 3000 |
| Fingerprint capacity | 3000 |
| Event capacity | 100,000 |
| Authentication | |
| Card type | M1 card |
| Card reading distance | 0 to 4.5 cm |
| Card reading duration | ＜ 1 s |
| Fingerprint module | Optical fingerprint module |
| Fingerprint comparing mode | 1:1 and 1:N |
| Fingerprint recognition duration | ＜ 1 s |
| General | |
| Indicator | Power/status (red/green) |
| Power supply | 12 VDC/1 A |
| Working temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Working humidity | 10% to 90% (no condensing) |
| Color | Black (included), gold (optional), silver (optional), white (optional) |
| Dimensions | 205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46") |
| Installation | Surface mounting |
| Language | English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian |
Specifications as published by Hikvision for model DS-K1T804AMF.
