  5. Hikvision DS-2CD1021G2-LIU
Hikvision DS-2CD1021G2-LIU View larger

Hikvision DS-2CD1021G2-LIU

DS-2CD1021G2-LIU

New product

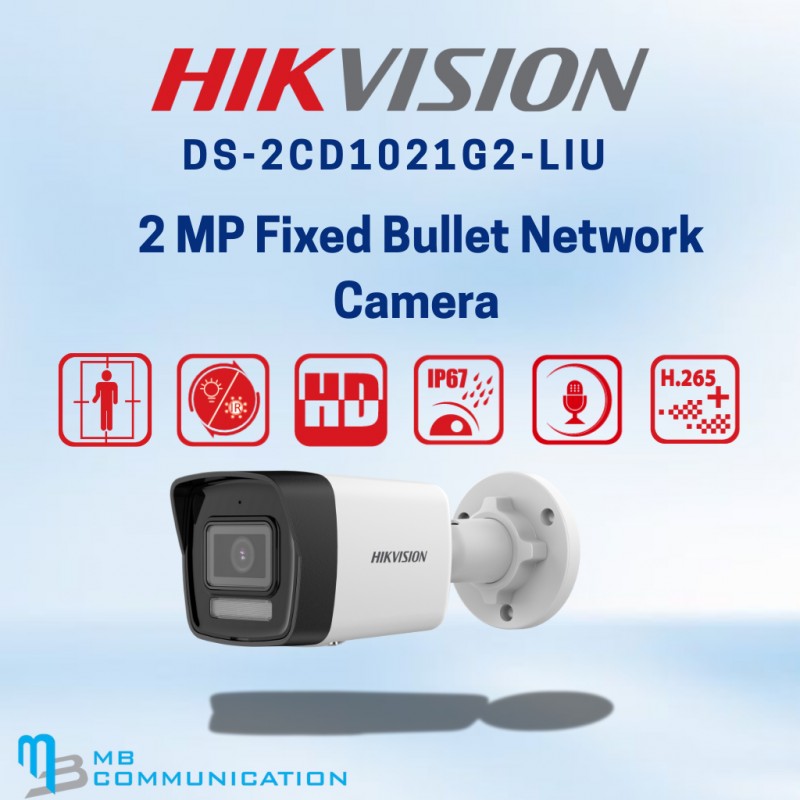

2 MP Fixed Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • Support Human Detection
  • Efficient H.265+ compression technology
  • Smart Hybrid Light: advanced technology with long range coverage

More details

In Stock

Whatsapp MB WhatsApp

Rs 7,280

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1021G2-LIU Features and Benefits

Features:

Hikvision DS-2CD1021G2-LIU Description

CategoryParameterSpecification
Camera Image Sensor 1/2.9" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Shutter Time 1/3 s to 1/100,000 s
Min. Illumination Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°
Lens Lens Type Fixed focal lens, 2.8 mm & 4 mm optional
FOV (2.8 mm) H: 101°, V: 56°, D: 118°
FOV (4 mm) H: 80°, V: 44°, D: 94°
Lens Mount M12
Iris Type Fixed
Aperture F2.2
DORI 2.8 mm D: 44 m, O: 17 m, R: 8 m, I: 4 m
4 mm D: 55 m, O: 22 m, R: 11 m, I: 5 m
Illumination Supplement Light Type IR, White Light
IR Range Up to 20 m
White Light Range Up to 15 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video Main Stream 50 Hz: 25 fps (1080p, 720p), 60 Hz: 30 fps (1080p, 720p)
Sub Stream 50 Hz: 25 fps (640×480, 640×360), 60 Hz: 30 fps (640×480, 640×360)
Video Compression H.265+/H.265/H.264+/H.264 (Main), H.265/H.264/MJPEG (Sub)
Video Bit Rate 32 Kbps – 8 Mbps
H.264 Type Baseline, Main, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Audio Audio Type Mono
Noise Filtering Yes
Sampling Rate 8 kHz / 16 kHz
Compression G.711ulaw / AAC-LC
Bit Rate 64 Kbps (G.711ulaw), 16–64 Kbps (AAC-LC)
Network Security Password protection, watermark, audit log, host authentication
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S/T), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, SMTP
Users Up to 32 (Admin / Operator / User)
Client iVMS-4200, Hik-Connect
Web Browser IE 10/11 (plugin), Chrome 57+, Firefox 52+, Edge 89+
Image WDR Digital WDR
SNR ≥ 52 dB
Privacy Mask 1 programmable polygon
Day/Night Switch Auto, Day, Night, Schedule
Image Enhancements BLC, HLC, 3D DNR
Adjustable Settings Saturation, Brightness, Contrast, Sharpness, Gain, White Balance
Interface Ethernet 1 RJ45 10/100M self-adaptive
Microphone Built-in (1)
Events Basic Event Motion detection (human filter), exception
Event Linkage Notify center, email, recording, capture
General Power 12V DC ±25% (max 5W) / PoE IEEE 802.3af Class 3 (max 6.5W)
Material Plastic
Dimension 138.8 × 60.9 × 57.9 mm
Package Dimension 163 × 75 × 75 mm
Weight 175 g (net), 250 g (with package)
Conditions -30 °C to 45 °C, ≤95% RH (non-condensing)
Language English, Ukrainian
Functions Heartbeat, anti-banding, mirror, password reset via email
Approvals EMC FCC Part 15B, CE-EMC EN55032, EN61000-3-2/3-3, EN50130-4
Safety CB IEC 62368-1, CE-LVD EN 62368-1
Environment CE-RoHS, WEEE, REACH
Protection IP67
