  5. Hikvision DS-2CD1321G2-LIU
Hikvision DS-2CD1321G2-LIU View larger

Hikvision DS-2CD1321G2-LIU

DS-2CD1321G2-LIU

New product

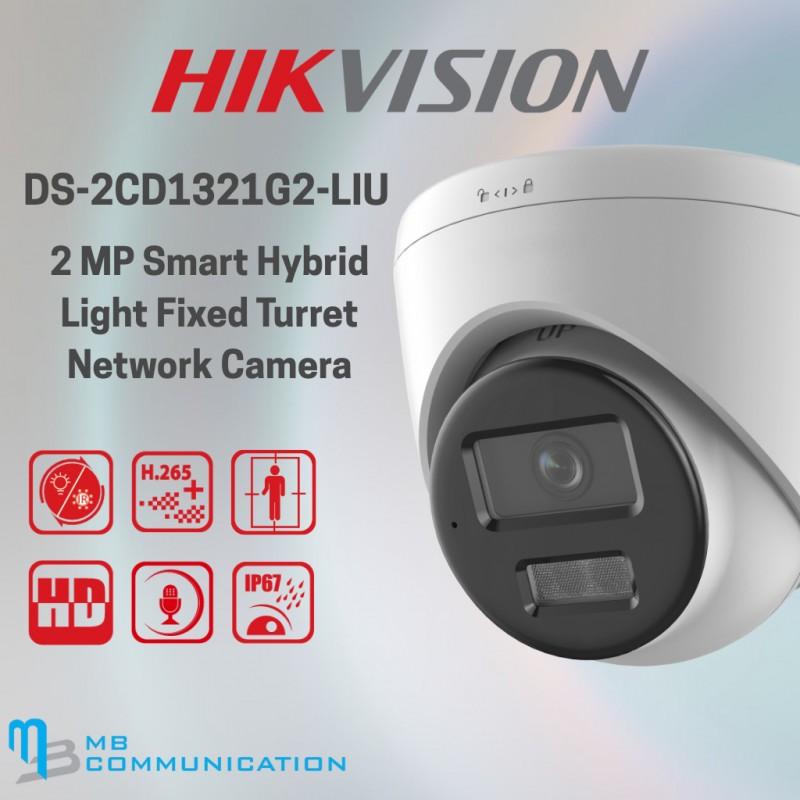

2 MP Smart Hybrid Light Fixed Turret Network Camera

  • High quality imaging with 2 MP resolution
  • Support Human Detection
  • Efficient H.265+ compression technology
  • Smart Hybrid Light: advanced technology with long range coverage

More details

In Stock

Whatsapp MB WhatsApp

Rs 7,690

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1321G2-LIU Features and Benefits

Features:

Hikvision DS-2CD1321G2-LIU Description

CategorySpecification
Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360°
Lens
Lens Type Fixed focal lens, 2.8 mm & 4 mm optional
Focal Length & FOV 2.8 mm → H:101°, V:56°, D:118° 4 mm → H:80°, V:44°, D:94°
Lens Mount M12
Iris Type Fixed
Aperture F2.2
DORI
2.8 mm D: 44 m, O: 17 m, R: 8 m, I: 4 m
4 mm D: 55 m, O: 22 m, R: 11 m, I: 5 m
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range IR: up to 20 m White Light: up to 15 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (1920×1080, 1280×720) 60 Hz: 30 fps (1920×1080, 1280×720)
Sub Stream 50 Hz: 25 fps (640×480, 640×360) 60 Hz: 30 fps (640×480, 640×360)
Video Compression Main: H.265+/H.265/H.264+/H.264 Sub: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps – 8 Mbps
H.264 Type Baseline / Main / High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Audio
Audio Type Mono sound
Noise Filtering Yes
Sampling Rate 8 kHz / 16 kHz
Compression G.711ulaw / AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw) / 16–64 Kbps (AAC-LC)
Network
Security Password protection, strong password, watermark, digest authentication, security log, MAC host authentication
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile T), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4/IPv6, UDP, QoS, SMTP
Users Up to 32 (Administrator, Operator, User)
Client iVMS-4200, Hik-Connect
Web Browser IE 10/11 (plugin) Chrome 57+, Firefox 52+, Edge 89+
Wide Dynamic Range Digital WDR
SNR ≥ 52 dB
Privacy Mask 1 programmable polygon
Day/Night Switch Auto, Day, Night, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Saturation, Brightness, Contrast, Sharpness, Gain, White Balance (via client software or browser)
Interface
Ethernet 1 RJ45 10/100M self-adaptive
On-Board Storage N/A
Built-in Microphone Yes (1)
Reset Key N/A
Event
Basic Event Motion detection (human filter), Exception
Linkage Notify center, Email, Trigger capture
General
Power 12 VDC ±25%, 0.41 A, max. 5 W PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material Plastic
Dimensions Ø109.9 × 103.6 mm (Ø4.3" × 4.1")
Package Dimensions 134 × 134 × 108 mm (5.3" × 5.3" × 4.3")
Weight 300 g (net), 460 g (with package)
Storage/Operating Conditions -30 °C to 45 °C, Humidity ≤95% (non-condensing)
Language English, Ukrainian
General Functions Heartbeat, Mirror, Password protection, Password reset via email
Approvals
EMC FCC Part 15B, CE-EMC EN 55032, EN 61000-3-2/3-3, EN 50130-4
Safety CB IEC 62368-1, CE-LVD EN 62368-1
Environment CE-RoHS, WEEE, REACH
Protection IP67
