Hikvision DS-2SE3C404MWG-E/14

DS-2SE3C404MWG-E/14

New product

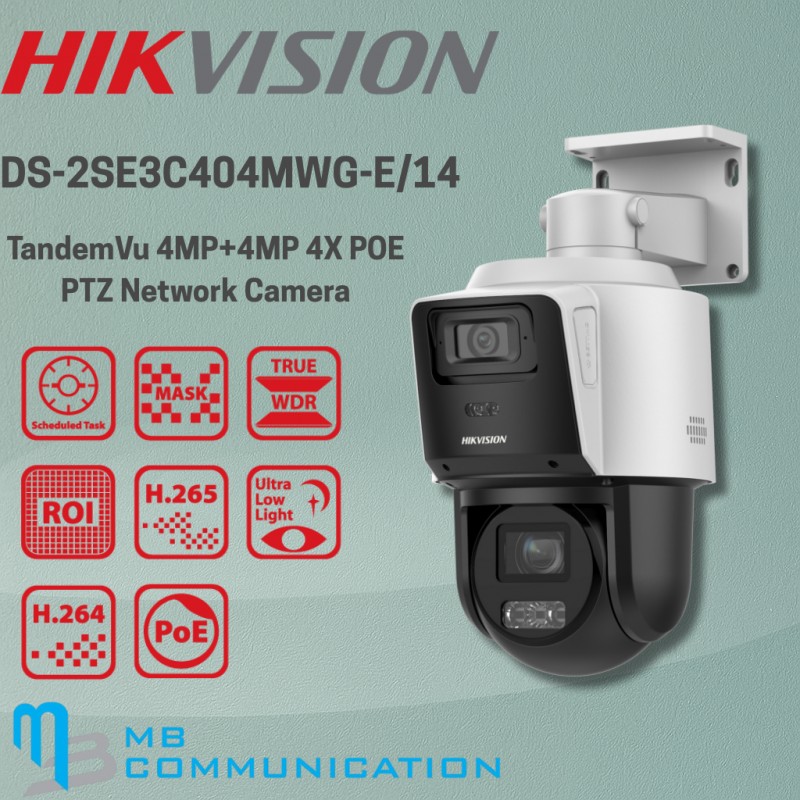

TandemVu 4MP+4MP 4X POE PTZ Network Camera

  • Captures a large area and great details at the same time
  • High quality imaging with 4 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Secures an expansive area with 4× optical zoom and 16× digital zoom

More details

In Stock

Whatsapp MB WhatsApp

Rs 40,560

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2SE3C404MWG-E/14 Features and Benefits

Features:

Hikvision DS-2SE3C404MWG-E/14 Description

CategorySpecification
Camera – Image Sensor Bullet: 1/2.8" Progressive Scan CMOS; PTZ: 1/2.8" Progressive Scan CMOS
Min. Illumination Bullet: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR; PTZ: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005 Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/30,000 s
Slow Shutter Yes
Day & Night ICR
Zoom PTZ: 4× optical, 16× digital
Max. Resolution Bullet: 2560 × 1440; PTZ: 2560 × 1440
Lens Focus Auto, manual, semi-auto
Focal Length Bullet: 2.8 mm; PTZ: 2.8–12 mm (4× optical)
Zoom Speed PTZ: approx. 3.3 s
FOV Bullet: H 114.9°, V 62.4°, D 130.7°; PTZ: H 98°–34.2°, V 52°–19.2°, D 111°–39°
Aperture Bullet: F1.6; PTZ: F1.5–F2.9
Illuminator Bullet: Hybrid (IR + White Light); PTZ: IR
Smart Supplement Light Yes
Light Range Bullet: IR up to 30 m, White Light 30 m; PTZ: IR up to 40 m
PTZ Pan Range 0°–350°
Tilt Range Bullet: 7°–17° (manual); PTZ: -5°–90°
Pan/Tilt Speed Pan: 0.1°–30°/s (preset 30°/s); Tilt: 0.1°–30°/s (preset 30°/s)
Presets 300
Patrol Scan 8 patrols, 32 presets each
3D Positioning Yes
Other PTZ Functions Proportional Pan, Power-off memory, Park Action, Status Display, Preset Freezing, Scheduled Tasks
Video – Main Stream Bullet & PTZ: 2560×1440 / 1920×1080 / 1280×720 @ 25fps (50Hz) / 30fps (60Hz)
Sub-Stream Bullet & PTZ: 640×480 / 640×360 @ 25fps (50Hz) / 30fps (60Hz)
Third Stream Bullet & PTZ: 1280×720 / 640×480 / 640×360 @ 25fps (50Hz) / 30fps (60Hz)
Video Compression H.265, H.264, MJPEG
Video Bitrate 32 kbps – 16384 kbps
H.264 Profiles Main, Baseline, High
H.265 Profile Main
ROI 1 fixed region (main stream)
Audio Compression G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC
Audio Bitrate MP2L2: 32–160 kbps; AAC: 16/32/64 kbps; MP3: 8–160 kbps
Audio Sampling Rate MP2L2: 16 kHz; AAC-LC: 16 kHz; PCM: 8/16 kHz; MP3: 8/16 kHz
Noise Filtering Yes
Network API ONVIF (S, G, T), ISAPI, SDK, ISUP
Protocols TCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, QoS, HTTPS, SNMP, NTP, PPPoE, DDNS, DHCP, 802.1x, IPv4/IPv6, etc.
Network Storage NAS (NFS, SMB/CIFS), ANR
Simultaneous Live View 20
Users/Hosts 32
Security 802.1X, MAC binding, User authentication, HTTPS encryption
Client Support iVMS-4200, Hik-Connect
Browser Support IE8+, Chrome 31–44, Firefox 30–51, Safari 8.0+
Image Features Sharpness, Saturation, Brightness, Contrast
WDR 120 dB
SNR ≥ 52 dB
Defog Digital Defog
Day/Night Switch Auto, Day, Night, Scheduled
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask Bullet: 24; PTZ: 24 (polygon masks)
Regional Focus PTZ only
Regional Exposure PTZ only
Interface Built-in Mic, Built-in Speaker, RJ45 (10/100M), Reset Button, MicroSD (up to 512 GB)
Events – Basic Motion Detection, Video Tampering, Exception, Alarm I/O
Events – Smart Line Crossing, Intrusion, Region Entrance/Exit, Audio Exception
Event Linkage Upload to FTP/NAS/SD, Notify Center, Email, Alarm Output, Recording, PTZ Actions
General Functions Mirror, Watermark, IP Filter, Password Protection
Power 12 VDC (Max 13.5W), PoE+
Operating Conditions -30°C to 50°C (-22°F to 122°F), ≤95% RH (non-condensing)
Demist Glass heating
Material PC
Dimensions 311.5 × 223.5 × 156 mm (12.26" × 8.80" × 6.14")
Weight 1.37 kg (3.02 lb)
Protection IP66, Surge & Voltage Transient Protection
