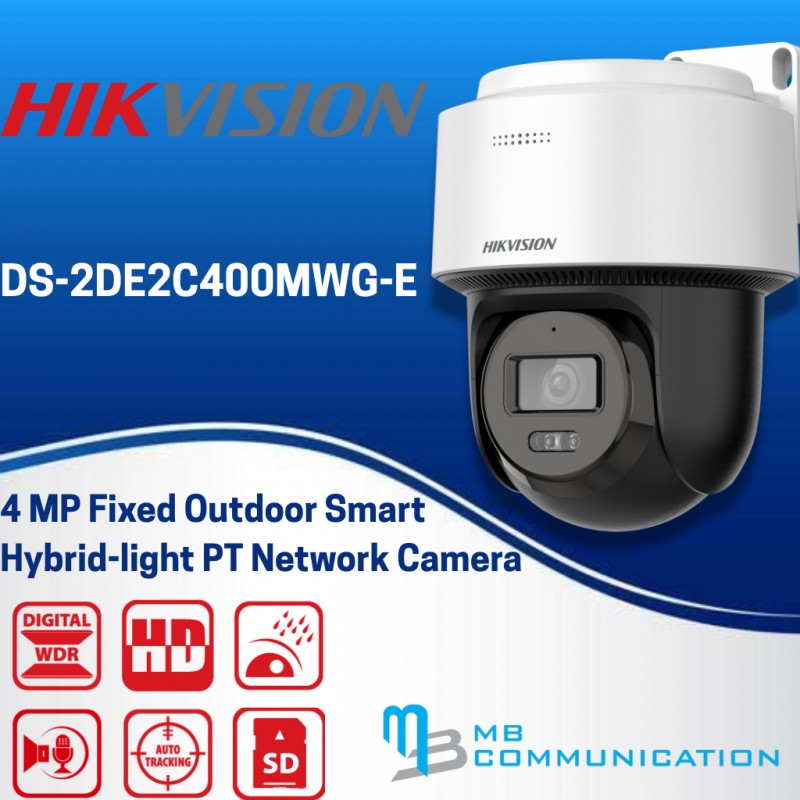

Hikvision DS-2DE2C400MWG-E View larger

Hikvision DS-2DE2C400MWG-E

DS-2DE2C400MWG-E

New product

4 MP Fixed Outdoor Smart Hybrid-light PT Network Camera

  • High quality imaging with 4 MP resolution
  • Support Human Detection and Auto-tracking Lite
  • Smart Hybrid Light: advanced technology with long range
  • Hik-Connect cloud service and APP for remote management and views of devices

More details

In Stock

Whatsapp MB WhatsApp

Rs 14,350

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2DE2C400MWG-E Features and Benefits

Features:

Hikvision DS-2DE2C400MWG-E Description

CategorySpecification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with light
Lens
Focal Length 2.8 mm, 4 mm
Field of View (FOV) 2.8 mm: H 94°, V 49°, D 114°; 4 mm: H 70°, V 35°, D 85°
Aperture F1.6
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range White light: up to 30 m; IR: up to 30 m
IR Wavelength 850 nm
PTZ
Pan Range 0° to 345°
Tilt Range 0° to 80°
Pan Speed Up to 25°/s
Tilt Speed Up to 20°/s
Video
Main Stream 50 Hz: 20 fps (2560×1440, 1920×1080, 1280×720); 60 Hz: 20 fps (2560×1440, 1920×1080, 1280×720)
Sub-Stream 50 Hz: 25 fps (640×480, 640×360)
Video Compression H.265, H.264, MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline, Main, High profiles
H.265 Type Main profile
Audio
Audio Compression G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
Audio Bit Rate 16 Kbps (G.722.1); 64 Kbps (G.711); 32–192 Kbps (MP2L2); 16 Kbps (G.726); 16–64 Kbps (AAC-LC); 8–48 Kbps (PCM)
Audio Sampling Rate 8 kHz, 16 kHz
Environment Noise Filtering Yes
Network
Protocols IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
API ONVIF (Profile S/G/T), ISAPI, SDK
Image Settings Saturation, brightness, contrast, sharpness adjustable via client or browser
Wide Dynamic Range Digital WDR
Image Enhancement BLC, HLC, 3D DNR
Interface
Ethernet Port 1 RJ45 10M/100M self-adaptive
Built-in Microphone Yes
Built-in Speaker Yes
On-board Storage microSD/microSDHC/microSDXC, up to 512 GB
Event
Basic Event Motion detection (human), video tampering, exception
Linkage Upload to FTP/memory card, notify center, send email, trigger capture, audible warning, auto-tracking lite
General
Power 12 VDC ± 25%, 0.75 A, max. 9 W; PoE IEEE 802.3af (36–57 V, 0.2–0.3 A, max. 10.5 W)
Dimensions Camera: 163.9×185.8×131.9 mm (6.45"×7.31"×5.19"); Package: 224×164×230 mm (8.82"×6.46"×9.06")
Weight Camera: 600 g (1.32 lb.); With package: 900 g (2.0 lb.)
Material Plastic
Operating Conditions -30°C to 40°C (-22°F to 104°F), Humidity ≤90% (non-condensing)
General Functions Mirror, password protection, watermark
Approval & Protection
EMC CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
Safety CB (IEC 62368-1:2014+A11), CE-LVD (EN 62368-1:2014/A11:2017)
Environment CE-RoHS (2011/65/EU), Reach (EC 1907/2006)
Protection IP66 (IEC 60529-2013)
