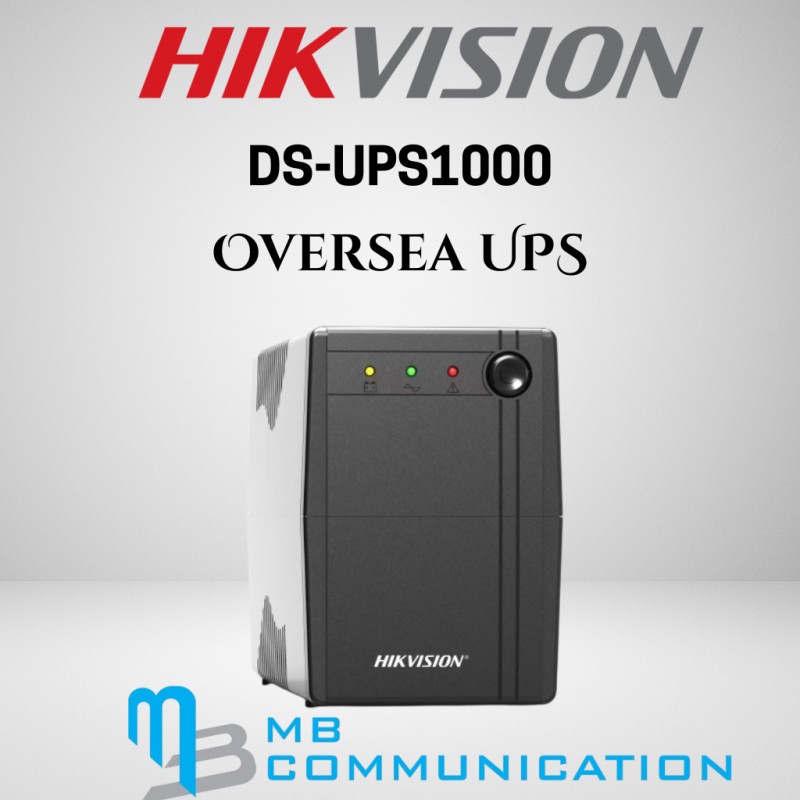

Hikvision DS-UPS1000 View larger

Hikvision DS-UPS1000

DS-UPS1000

New product

Oversea UPS

  • Built-in AVR
  • Super fast charging
  • Wide input voltage range
  • Overload protection
  • Short circuit protection
  • Surge protection

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 22,880

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-UPS1000 Features and Benefits

Features:

Hikvision DS-UPS1000 Description

CategorySpecification
Power
UPS Capacity 1000 VA / 600 W
Input
Input Voltage Range 140 VAC to 290 VAC; 85 VAC to 150 VAC
Input Frequency 50/60 Hz self-adaptive
Plug Type UK TYPE G; Type B (NEMA 5-15); Schuko
Output
Output Frequency 50/60 Hz ± 0.5 Hz self-adaptive
Output Voltage Range 210 VAC to 235 VAC; 110 VAC to 125 VAC
Transfer Time ≤ 10 ms
Waveform PWM
Outlet Type Universal
Outlet Number 2
Battery
Battery Type 12 V / 9 Ah, lead-acid battery
Recharge Time 4–6 hours to recover 90% capacity
Typical Backup Time 60 W load: 60 min150 W load: 15 min300 W load: 2 min
Interface
Communicate Ports None
Protection
Full Protection Surge protection, Overload protection, Discharge protection, Short circuit protection
Indicator & Alarm
Display LED indicator
Working Mode (AC) Solid green
Charging Mode (DC) Solid red
Overloading Mode Flashing yellow
Charging Mode Alarm Beeps every 8 seconds
Low Battery Alarm Beeps every second
Overload Alarm Beeps every 0.5 seconds
Fault Alarm Continuous sound
General
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 30% to 90% (non-condensing)
Dimension (W × D × H) 274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")
Weight Approx. 5.4 kg (11.9 lb)
