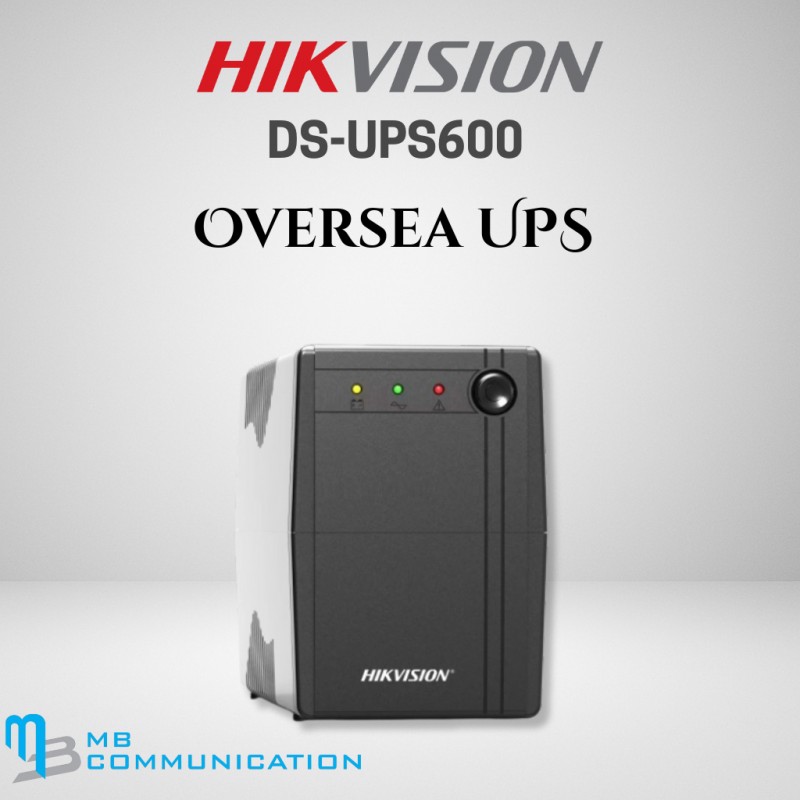

Hikvision DS-UPS600 View larger

Hikvision DS-UPS600

DS-UPS600

New product

Oversea UPS

  • Built-in AVR
  • Super fast charging
  • Wide input voltage range
  • Overload protection
  • Short circuit protection
  • Surge protection

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-UPS600 Features and Benefits

Features:

Hikvision DS-UPS600 Description

CategoryParameterDetails
UPS Capacity Capacity 600 VA / 360 W
Input Voltage Range 140–290 VAC; 85–150 VAC
Frequency 50/60 Hz self-adaptive
Plug Type UK TYPE G; Type B (NEMA 5-15); Schuko
Output Voltage Range 210–235 VAC; 110–125 VAC
Frequency 50/60 Hz ± 0.5 Hz self-adaptive
Transfer Time ≤ 10 ms
Waveform PWM
Outlet Type Universal
Outlet Number 2
Battery Type 12 V/7 Ah lead-acid
Recharge Time 4–6 hours (to 90% capacity)
Backup Time 60 W: 35 min100 W: 20 min200 W: 3 min
Interface Communication Ports No
Protection Full Protection Surge, overload, discharge, overcharge
Indicator Display LED indicator (Green: AC, Red: Charging, Yellow: Overload)
Alarm Charging Mode Every 8 sec
Low Battery Every 1 sec
Overloading Every 0.5 sec
Fault Continuous sound
General Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 30%–90% (non-condensing)
Dimension 274 × 95 × 139 mm (10.79" × 3.74" × 5.47")
Weight Approx. 4.2 kg (9.26 lb)
