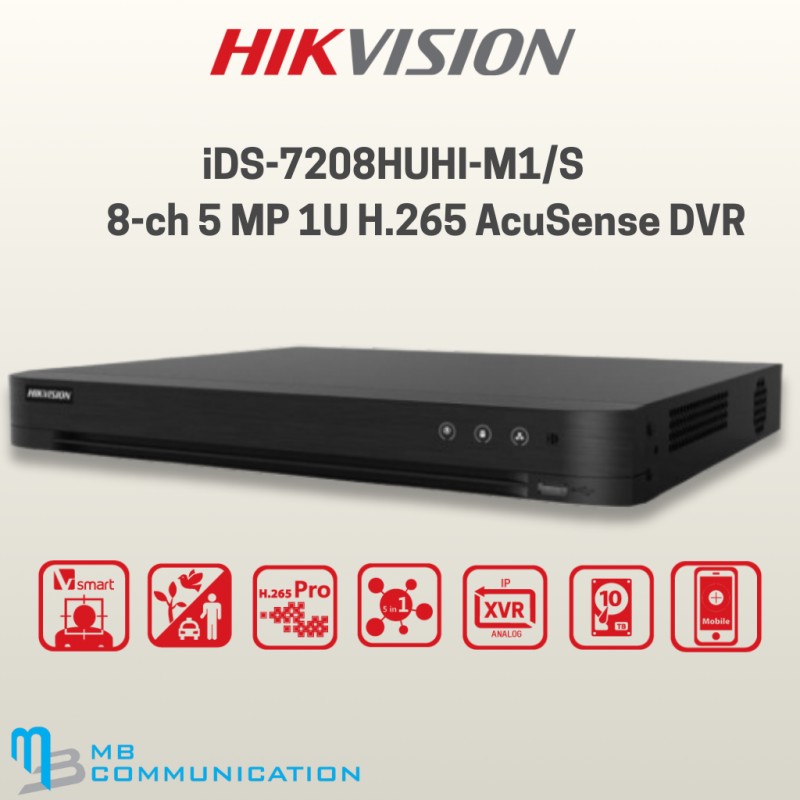

8-ch 5 MP 1U H.265 AcuSense DVR

• 8 channels and 1 HDD 1U AcuSense DVR
• Providing detailed information with face detection
• False alarm reduction by human and vehicle target classification based on deep learning
• Efficient H.265 pro+ compression technology
• Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 16 network cameras can be connected.

Specification

• Recording
• Encoding Resolution

  Main stream:

  8 MP@8 fps/5 MP@12 fps/

  4 MP@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bit Rate: 32 Kbps to 10 Mbps
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Dual Stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bit Rate: 64 Kbps

• Video And Audio
• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Synchronous Playback: 8-ch
• IP Video Input: 8-ch (up to 16-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
• HDTVI Input

  8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

• HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS Input: PAL/NTSC
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Analog Video Input: 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD Input: 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• HDMI/VGA Output

  HDMI:

  1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,

  1920 × 1080/60Hz,

  1280 × 1024/60Hz,

  1280 × 720/60Hz,

  1024 × 768/60Hz

  VGA:

  1-ch, 1920 × 1080/60Hz,

  1280 × 1024/60Hz,

  1280 × 720/60Hz,

  1024 × 768/60Hz

  HDMI/VGA simultaneous output

• Network
• Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connections: 64
• Network Interface

  1,RJ45 10M/100M/1000M self-adaptive

  Ethernet interface

• Auxiliary Interface
• Capacity: Up to 10 TB capacity for each disk
• Serial Interface: RS-485 (half-duplex)
• USB Interface

  1 × USB 2.0；

  1 × USB 3.0

• Alarm In/Out: N/A
• SATA: 1 SATA interface

• General
• Consumption(Without HDD): ≤ 10 W
• Working Humidity: 10% to 90%
• Power Supply: 12 VDC
• Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
• Dimensions(W × D × H): 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Weights (Without HDD): ≤ 2 kg (4.4 lb)
