  8. Hikvision DS-2CD1P47G2-L
Hikvision DS-2CD1P47G2-L View larger

Hikvision DS-2CD1P47G2-L

DS-2CD1P47G2-L

New product

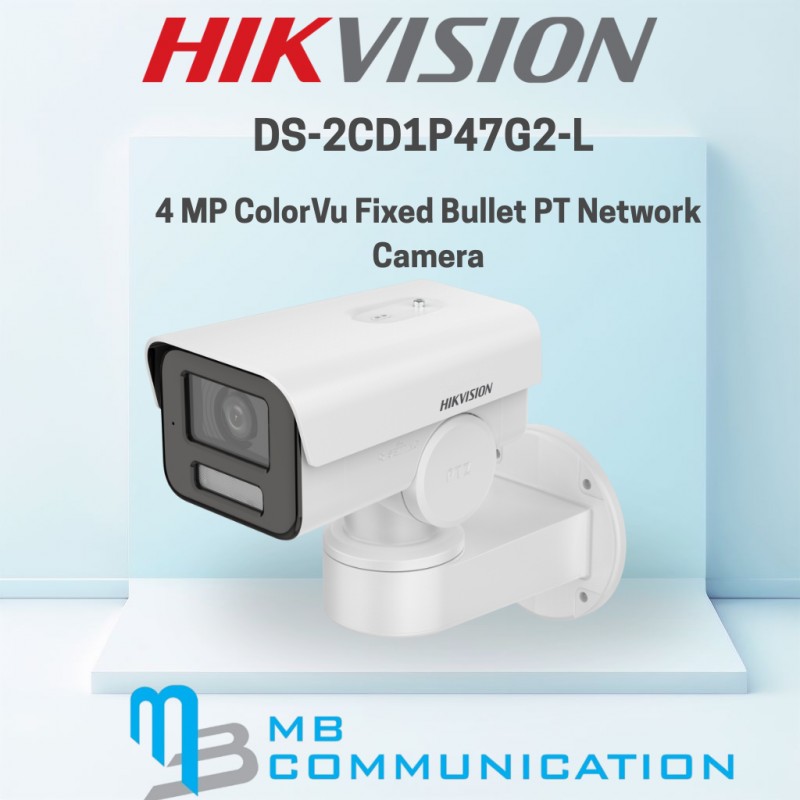

4 MP ColorVu Fixed Bullet PT Network Camera

  • High quality imaging with 4 MP resolution
  • 24/7 colorful imaging
  • Pan and tilt ability that enables the camera to capture larger and interested areas

More details

In Stock

Whatsapp MB WhatsApp

Rs 20,800

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1P47G2-L Features and Benefits

Features:

Hikvision DS-2CD1P47G2-L Description

CategorySpecification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night 24/7 color imaging
Angle Adjustment Pan: -100° to 100°, Tilt: -20° to 45°
Lens
Lens Type Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV 2.8 mm: H 96°, V 52°, D 113°; 4 mm: H 76°, V 41°, D 89°
Lens Mount M12
Iris Type Fixed
Aperture Max. F1.0
DORI (Detection/Observation/Recognition/Identification) 2.8 mm: D 64 m, O 25 m, R 12 m, I 6 m; 4 mm: D 82 m, O 32 m, R 16 m, I 8 m
Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Video
Main Stream 50Hz: 20 fps (2560×1440), 25 fps (1920×1080/1280×720); 60Hz: 20 fps (2560×1440), 24 fps (1920×1080/1280×720)
Sub-Stream 50Hz: 25 fps (1280×720/640×480/640×360); 60Hz: 24 fps (1280×720/640×480/640×360)
Video Compression Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG
Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline/Main/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
ROI 1 fixed region (main stream)
Audio (-U models)
Audio Type Mono
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz / 16 kHz
Audio Compression G.711ulaw/alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC
Audio Bit Rate 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC)
Network
Security Password protection, HTTPS authentication, watermark, audit logs
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S/G*/T), ISAPI, SDK (*G only on -F model)
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Users/Hosts Up to 32 (Admin/Operator/User)
Client Software iVMS-4200, Hik-Connect
Web Browser IE10/IE11 (plugin), Chrome 57+, Firefox 52+ (local view)
WDR 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate, saturation, brightness, contrast, sharpness, gain, white balance
Privacy Mask 4 regions
Interface
Ethernet 1 × RJ45 10/100M self-adaptive
On-board Storage (-F) MicroSD/SDHC/SDXC, up to 256 GB
Built-in Microphone (-U) Yes
Reset Key (-F) Yes
Events
Basic Event Motion detection (human/vehicle filter), tampering alarm, exception
Linkage FTP/memory upload (-F), email, notify center, recording (-F), capture
General
Power 12 VDC ±25% (0.91 A, max. 11 W), PoE 802.3af Class 3 (36–57 VDC, max. 12.5 W)
Material Front cover: Metal; Body: Plastic; Bracket: Plastic
Dimensions 197.1×105×225.4 mm (7.8"×4.1"×8.9")
Package Dimensions 300×266×172 mm (11.8"×10.4"×6.8")
Weight Approx. 900 g (2.0 lb)
Weight with Package Approx. 1520 g (3.3 lb)
Storage Conditions -30°C to 60°C (-22°F to 140°F), ≤95% RH (non-condensing)
Startup & Operating Conditions -30°C to 60°C (-22°F to 140°F), ≤95% RH (non-condensing)
Language English, Ukrainian
General Functions Anti-banding, heartbeat, password reset via email
Approvals
EMC CE-EMC EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014; RCM AS/NZS CISPR 32:2015; IC ICES-003: Issue 7; KC KN32/KN35:2015; FCC Part 15 Subpart B
Safety UL 62368-1, CB IEC 62368-1:2014+A11, CE-LVD EN 62368-1:2014/A11:2017, BIS IS 13252 (IEC 60950-1)
Environment CE-RoHS 2011/65/EU, WEEE 2012/19/EU, REACH EC 1907/2006
Protection IP66 (IEC 60529-2013)
