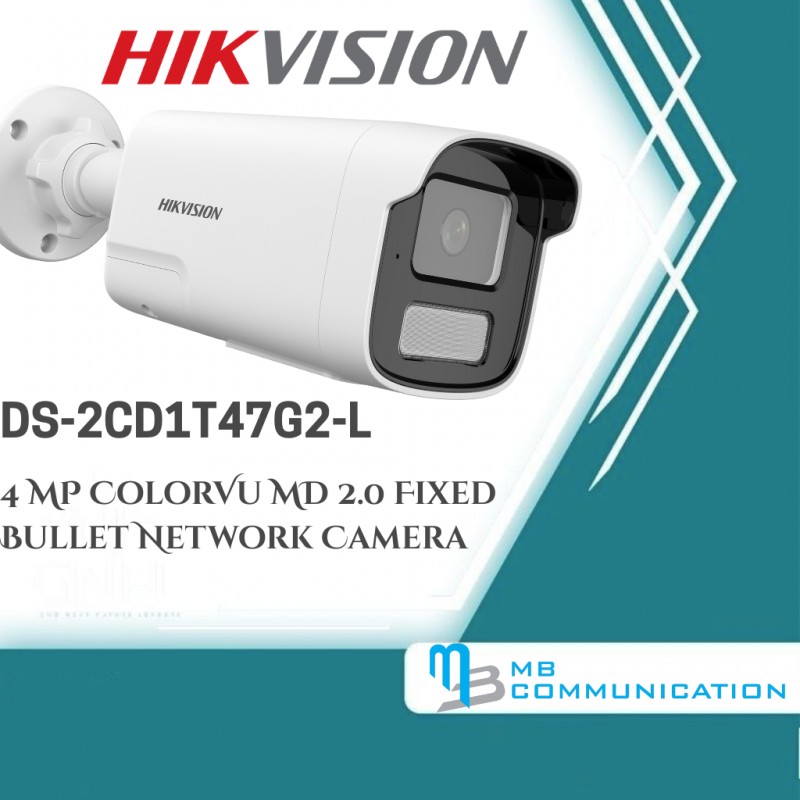

Hikvision DS-2CD1T47G2-L View larger

Hikvision DS-2CD1T47G2-L

DS-2CD1T47G2-L

New product

4 MP ColorVu MD 2.0 Fixed Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • 24/7 colorful imaging
  • Support Human and Vehicle Detection
  • Water and dust resistant (IP67)
  • Clear imaging even with strong back lighting due to 120 dB WDR

More details

In Stock

Whatsapp MB WhatsApp

Rs 17,470

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1T47G2-L Features and Benefits

Features:

Hikvision DS-2CD1T47G2-L Description

CategorySpecification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night 24/7 color imaging
Angle Adjustment Pan: 0°–360°, Tilt: 0°–180°, Rotate: 0°–360°
Lens
Lens Type Fixed focal lens, 4 mm and 6 mm optional
Focal Length & FOV 4 mm: H 75°, V 40°, D 89° 6 mm: H 49°, V 27°, D 57°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
Depth of Field 4 mm: 2.7 m–∞ 6 mm: 6 m–∞
DORI 4 mm: D 82 m, O 32 m, R 16 m, I 8 m 6 mm: D 120 m, O 47 m, R 24 m, I 12 m
Illuminator
Supplement Light Type White Light
Range Up to 50 m
Smart Supplement Light Yes
Video
Main Stream 50Hz: 20 fps (2560×1440), 25 fps (1920×1080, 1280×720) 60Hz: 20 fps (2560×1440), 24 fps (1920×1080, 1280×720)
Sub-Stream 50Hz: 25 fps (1280×720, 640×480, 640×360) 60Hz: 24 fps (1280×720, 640×480, 640×360)
Video Compression H.265+/H.265/H.264+/H.264, MJPEG
Video Bit Rate 32 Kbps–8 Mbps
H.264 Type Baseline, Main, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
ROI 1 fixed region (main stream)
Audio (-U Models)
Audio Type Mono
Noise Filtering Yes
Sampling Rate 8 kHz / 16 kHz
Compression G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC
Audio Bit Rate 64 Kbps (G.711), 16 Kbps (G.722.1), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC)
Network
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S/T/G), ISAPI, SDK
Users Up to 32 (Admin, Operator, User)
Security Password protection, complicated password, watermark, authentication, audit log, MAC filtering
Client iVMS-4200, Hik-Connect
Web Browser IE10/11 (plug-in), Chrome 57+, Firefox 52+
WDR 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate, saturation, brightness, contrast, sharpness, gain, WB (adjustable)
Privacy Mask 4 programmable polygon masks
Interface
Ethernet 1 RJ45 10/100M self-adaptive
On-Board Storage microSD/SDHC/SDXC up to 256 GB
Built-in Mic (-U) Yes
Reset Key (-F) Yes
Event
Basic Event Motion detection (human/vehicle), tampering, exception
Linkage Upload FTP/SD (-F), notify, email, recording, snapshot
General
Power 12 VDC ±25%, PoE (802.3af, Class 3), Max 6.5 W
Material Front: metal, Body: plastic, Bracket: metal
Dimension 83.7 × 80.7 × 205.6 mm
Package Dimension 260 × 125 × 125 mm
Weight ~560 g (-L), ~580 g (-LUF)
Package Weight ~615 g (-L), ~635 g (-LUF)
Storage Conditions -30 °C to 60 °C, ≤95% RH
Operating Conditions -30 °C to 60 °C, ≤95% RH
Language English, Ukrainian
Functions Heartbeat, anti-banding, mirror, password reset via email
Certifications
EMC FCC, CE-EMC, RCM, KC
Safety UL 62368-1, IEC 62368-1, CE-LVD, BIS
Environment CE-RoHS, WEEE, REACH
Protection IP67
