Hikvision DS-2CD1T47G2H-LIU View larger

Hikvision DS-2CD1T47G2H-LIU

DS-2CD1T47G2H-LIU

New product

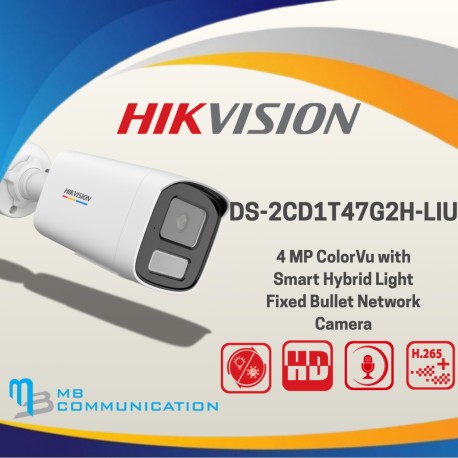

4 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology

More details

In Stock

Whatsapp MB WhatsApp

Rs 17,990

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1T47G2H-LIU Features and Benefits

Features:

Hikvision DS-2CD1T47G2H-LIU Description

CategorySpecification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–355°, Tilt: 0°–180°, Rotate: 0°–355°
Lens
Lens Type Fixed focal lens (2.8 mm or 4 mm optional)
Focal Length & FOV 2.8 mm: H 115°, V 60°, D 143°4 mm: H 94°, V 50°, D 110°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
DORI (Detection, Observation, Recognition, Identification) 2.8 mm: D 64m, O 25m, R 12m, I 6m4 mm: D 77m, O 30m, R 15m, I 7m
Illuminator
Supplement Light Type IR, White Light
Range Up to 50 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 20 fps (2560×1440), 25 fps (1920×1080, 1280×720)60 Hz: 20 fps (2560×1440), 24 fps (1920×1080, 1280×720)
Sub-Stream 50 Hz: 25 fps (1280×720, 640×480, 640×360)60 Hz: 24 fps (1280×720, 640×480, 640×360)
Video Compression Main: H.265+/H.265/H.264+/H.264Sub: H.265/H.264/MJPEG
Bit Rate 32 Kbps–8 Mbps
Profiles H.264: Baseline/Main/HighH.265: Main
Bit Rate Control CBR, VBR
ROI 1 fixed region (main stream)
SVC H.264 & H.265 encoding
Audio
Audio Type Mono
Compression G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
Audio Bit Rate 64 Kbps (G.711), 16 Kbps (G.722.1), 16 Kbps (G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC)
Sampling Rate 8 kHz / 16 kHz
Environment Noise Filtering Yes
Network
Protocols IPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, T, G -F), ISAPI, SDK
Users Up to 32 (Admin, Operator, User)
Security Password protection, watermark, authentication logs, MAC host authentication
Client iVMS-4200, Hik-Connect
Browser Support IE 10/11 (plugin required), Chrome 57+, Firefox 52+, Edge 89+
Settings Rotate, saturation, brightness, contrast, sharpness, gain, white balance (adjustable)
Day/Night Switch Day, Night, Auto, Schedule
WDR 120 dB
SNR ≥ 52 dB
Enhancement BLC, HLC, 3D DNR
Privacy Mask 4 programmable polygon zones
Interface
Ethernet 1 RJ45 10M/100M self-adaptive port
On-board Storage (-F) microSD/microSDHC/microSDXC, up to 512 GB
Built-in Mic Yes
Reset Key (-F) Yes
Events
Basic Event Motion detection (human/vehicle), tampering, exception
Linkage Upload to memory card (-F), trigger recording (-F), upload to FTP, email alerts, snapshots
General
Power 12 VDC ±25%, 0.57 A, Max. 6.8 W, Ø5.5 mm plugPoE: IEEE 802.3af, Class 3, Max. 8.3 W
Material Front: Metal, Body: Plastic, Bracket: Plastic
Dimensions 81×83.7×201.96 mm (3.17"×3.29"×7.95")
Package Dimension 150×150×141 mm (5.91"×5.91"×5.55")
Weight ~550 g (1.2 lb), with package ~800 g (1.8 lb)
Storage Conditions -30°C to 60°C (-22°F to 140°F), Humidity ≤95%
Operating Conditions -30°C to 60°C (-22°F to 140°F), Humidity ≤95%
Language English, Ukrainian
Functions Heartbeat, anti-banding, mirror, password reset via email
Approvals & Protection
EMC CE-EMC, RCM, IC: ICES-003
Safety CB, CE-LVD, BIS
Environment CE-RoHS, WEEE, Reach
Protection IP67 (IEC 60529:2013)
