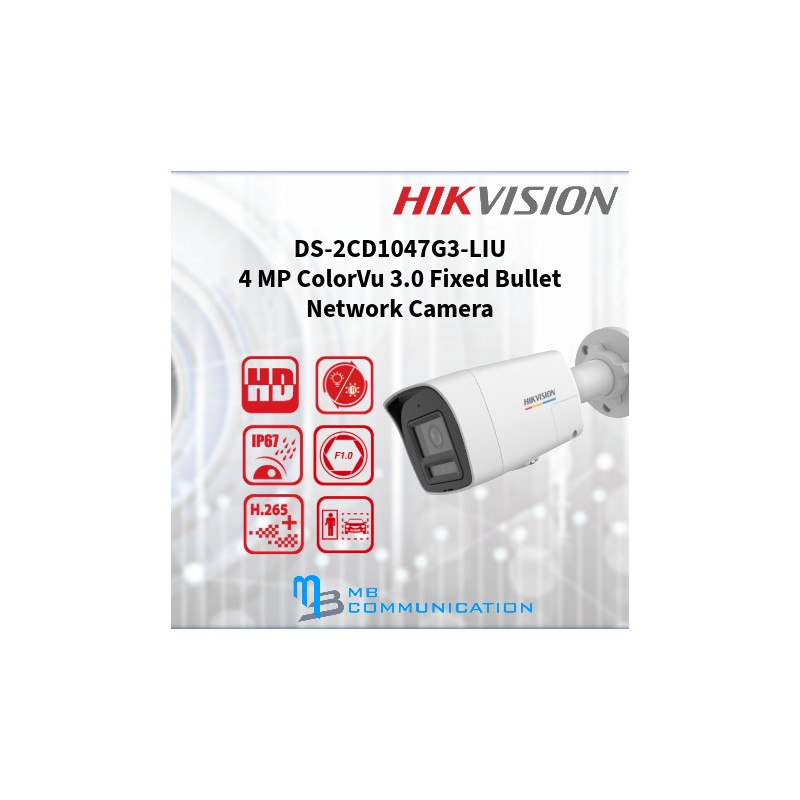

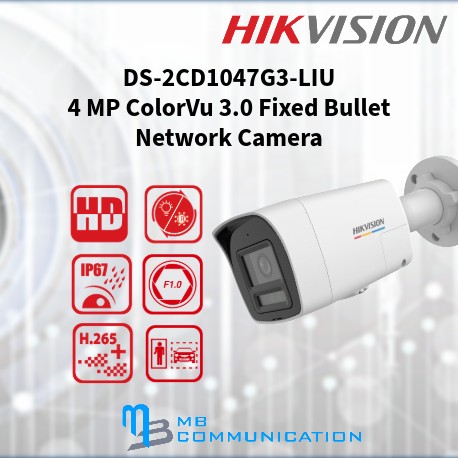

DS-2CD1047G3-LIU

Specification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 95.7°, vertical FOV 51.7°, diagonal FOV 113.7°
4 mm, horizontal FOV 79.6°, vertical FOV 43.2°, diagonal FOV 93.2°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
Depth of Field 2.8 mm: 1.7 m to ∞
4 mm: 1.6 m to ∞
DORI
DORI 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type IR,White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Audio Type Mono sound
Built-in Microphone Yes, 1 built-in microphone
Environment Noise Filtering Yes
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC,HLC,3D DNR
Privacy Mask 4 programmable rectangular privacy masks
Network
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Client iVMS-4200; Hik-Connect
On-Board Storage NA (SD card slot only on -LIUF model)
Event
Motion detection (person and vehicle), video tampering alarm, exception
General
Power 12 VDC ± 25%, 0.55 A, max. 6.6 W; PoE: IEEE 802.3af, Class 3, max. 8.0 W
Material Front cover: metal, body: plastic, bracket: plastic
Dimension 69.1 mm × 66.9 mm × 172.9 mm
Weight Approx. 330 g
Operating Conditions -30 °C to 60 °C, humidity 95% or less (non-condensing)
Protection IP67
