  8. Hikvision DS-2CD1063G2-LIUF/SL
Hikvision DS-2CD1063G2-LIUF/SL View larger

Hikvision DS-2CD1063G2-LIUF/SL

DS-2CD1063G2-LIUF/SL

New product

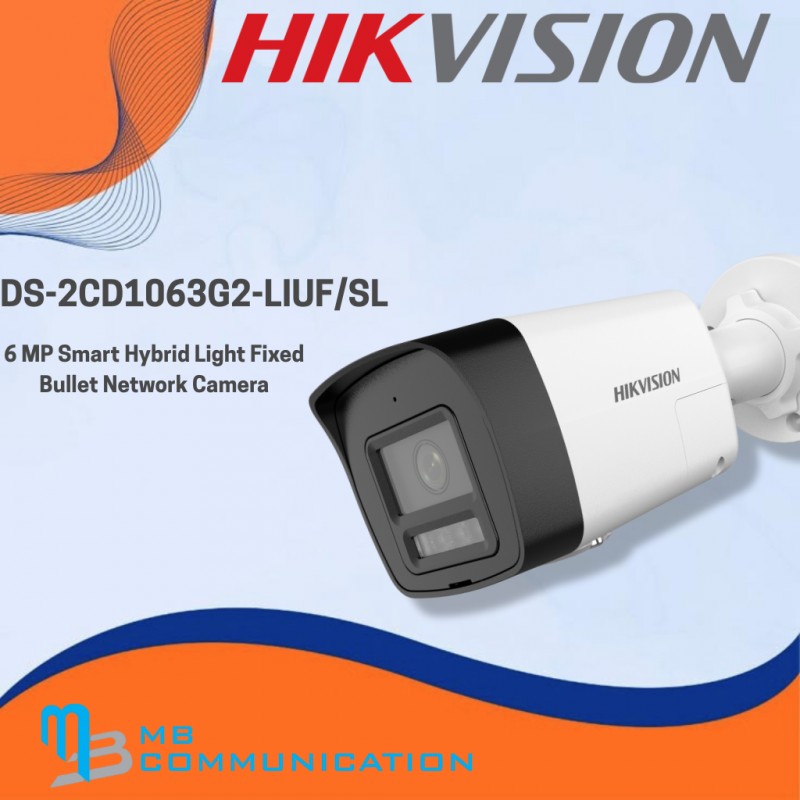

6 MP Smart Hybrid Light Fixed Bullet Network Camera

  • High quality imaging with 6 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology

More details

In Stock

Whatsapp MB WhatsApp

Rs 15,390

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1063G2-LIUF/SL Features and Benefits

Features:

Hikvision DS-2CD1063G2-LIUF/SL Description

CategorySpecification
Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°
Lens Type Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV 2.8 mm: HFOV 105°, VFOV 55°, DFOV 127°4 mm: HFOV 78°, VFOV 38°, DFOV 96°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI (2.8 mm) D: 76 m, O: 30 m, R: 15 m, I: 7 m
DORI (4 mm) D: 115 m, O: 45 m, R: 23 m, I: 11 m
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream (50Hz) 20 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
Main Stream (60Hz) 20 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
Sub-Stream (50Hz) 20 fps (1280×720, 640×480, 640×360)
Sub-Stream (60Hz) 20 fps (1280×720, 640×480, 640×360)
Video Compression Main: H.265+/H.265/H.264+/H.264Sub: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline, Main, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
ROI 1 fixed region (main stream)
SVC H.264, H.265 encoding
Audio Type Mono
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC)
Network Security Password protection, watermark, HTTP & ONVIF auth, audit log
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S/T/G), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
Users/Hosts Up to 32 users (admin/operator/user)
Client iVMS-4200, Hik-Connect
Web Browser Support Live view: IE 10/11 (plug-in required)Local: Chrome 57+, Firefox 52+, Edge 89+
WDR 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate, saturation, brightness, contrast, sharpness, gain, white balance
Privacy Mask 4 programmable polygon masks
Ethernet Interface 1 RJ45 10M/100M self-adaptive
On-board Storage microSD/microSDHC/microSDXC up to 512 GB
Built-in Mic Yes
Built-in Speaker 1.5 W, SPL: 95 dB @10 cm
Reset Key Yes
Events Motion detection (human/vehicle), video tampering, exception
Event Linkage FTP/NAS/memory upload, email, trigger recording/capture, audible warning, flashing light
Power Supply 12 VDC ±25%, 0.66 A (max 8 W), PoE IEEE 802.3af (Class 3, max 9.5 W)
Material Metal & Plastic
Dimensions 179 × 67.4 × 69.1 mm (7.1" × 2.7" × 2.7")
Package Dimensions 216 × 121 × 118 mm (8.5" × 4.8" × 4.6")
Weight 285 g (0.6 lb), with package: 490 g (1.1 lb)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), ≤95% humidity (non-condensing)
Startup/Operating Conditions Same as storage
Languages English, Ukrainian
General Functions Heartbeat, anti-banding, mirror, password reset via email
Flashing Light Yes
EMC Approvals CE-EMC: EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019RCM: AS/NZS CISPR 32:2015IC: ICES-003: Issue 7
Safety Approvals UL 62368-1, CB IEC 62368-1:2014+A11, CE-LVD EN 62368-1:2014/A11:2017, BIS IS 13252 (Part 1):2010
Environmental Approvals CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: EC 1907/2006
Protection IP67: IEC 60529-2013
