  8. Hikvision DS-2CD1063G2-LIU
Hikvision DS-2CD1063G2-LIU View larger

Hikvision DS-2CD1063G2-LIU

DS-2CD1063G2-LIU

New product

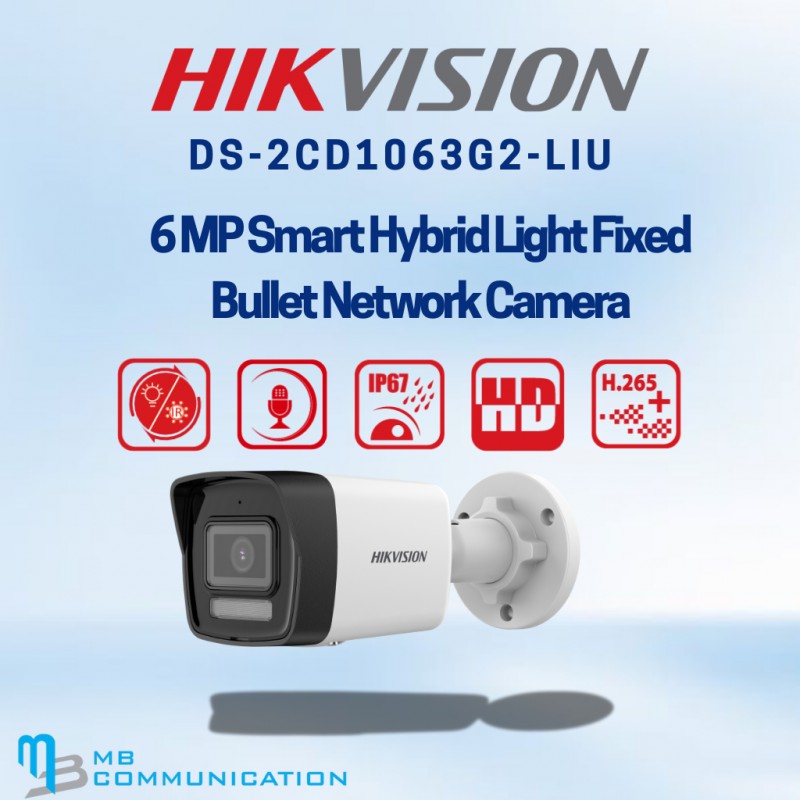

6 MP Smart Hybrid Light Fixed Bullet Network Camera

  • High quality imaging with 6 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Water and dust resistant (IP67)
  • Efficient H.265+ compression technology

More details

In Stock

Whatsapp MB WhatsApp

Rs 14,040

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1063G2-LIU Features and Benefits

Features:

Hikvision DS-2CD1063G2-LIU Description

CategorySpecification
Camera
Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°
Lens
Lens Type Fixed focal lens, 2.8 mm / 4 mm optional
Focal Length & FOV 2.8 mm: H 105°, V 55°, D 127° 4 mm: H 78°, V 38°, D 96°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI Distance 2.8 mm: D 76 m, O 30 m, R 15 m, I 7 m 4 mm: D 115 m, O 45 m, R 23 m, I 11 m
Illuminator
Supplement Light Type IR, White Light
Range IR: up to 30 m; White Light: up to 20 m
Smart Supplement Yes
IR Wavelength 850 nm
Video
Main Stream 50Hz: 20 fps (3200×1800, 2688×1520, 1920×1080, 1280×720) 60Hz: same
Sub Stream 50Hz/60Hz: 20 fps (1280×720, 640×480, 640×360)
Compression H.265+/H.265/H.264+/H.264/MJPEG
Video Bit Rate 32 Kbps–16 Mbps
H.264 Profiles Baseline, Main, High
H.265 Profile Main
Bit Rate Control CBR, VBR
ROI 1 fixed region (main stream)
Audio
Audio Type Mono sound
Noise Filtering Yes
Sampling Rate 8 kHz / 16 kHz
Compression G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
Bit Rate 16–160 Kbps (format dependent)
Network
Security Password protection, watermark, authentication, logs
Live View Up to 6 channels
API ONVIF (S, T, G*), ISAPI, SDK
Protocols TCP/IP, DHCP, DNS, HTTP, RTP/RTSP, NTP, IGMP, IPv6, UDP, FTP, SMTP
Users Up to 32 (Admin/Operator/User)
Client iVMS-4200, Hik-Connect
Browser IE 10/11 (plug-in), Chrome 57+, Firefox 52+
WDR 120 dB
SNR ≥ 52 dB
Day/Night Switch Auto, Schedule, Day, Night
Enhancement BLC, HLC, 3D DNR
Settings Rotate, brightness, contrast, sharpness, gain, WB
Privacy Mask Up to 4 regions
Interface
Ethernet 1 RJ45 10M/100M port
Storage MicroSD/SDHC/SDXC up to 256 GB (-F model)
Built-in Mic Yes
Reset Key -F model
Event
Basic Events Motion detection (human/vehicle), tampering, exception
Linkage FTP, SD card, email, NVR, snapshot
General
Power 12 VDC ±25% (5 W max), PoE IEEE 802.3af (6.5 W max)
Material Metal & Plastic
Dimension 170.8 × 66 × 69.1 mm
Package Dimension 216 × 121 × 118 mm
Weight 285 g (net), 481 g (with package)
Operating Temp -30 °C to 60 °C; ≤95% RH (non-condensing)
Storage Temp -30 °C to 60 °C; ≤95% RH
Language English, Ukrainian
Functions Heartbeat, anti-banding, mirror, password reset via email
Certifications
EMC CE, RCM, IC
Safety UL, CB, CE-LVD, BIS
Environment CE-RoHS, WEEE, Reach
Protection IP67
