View larger

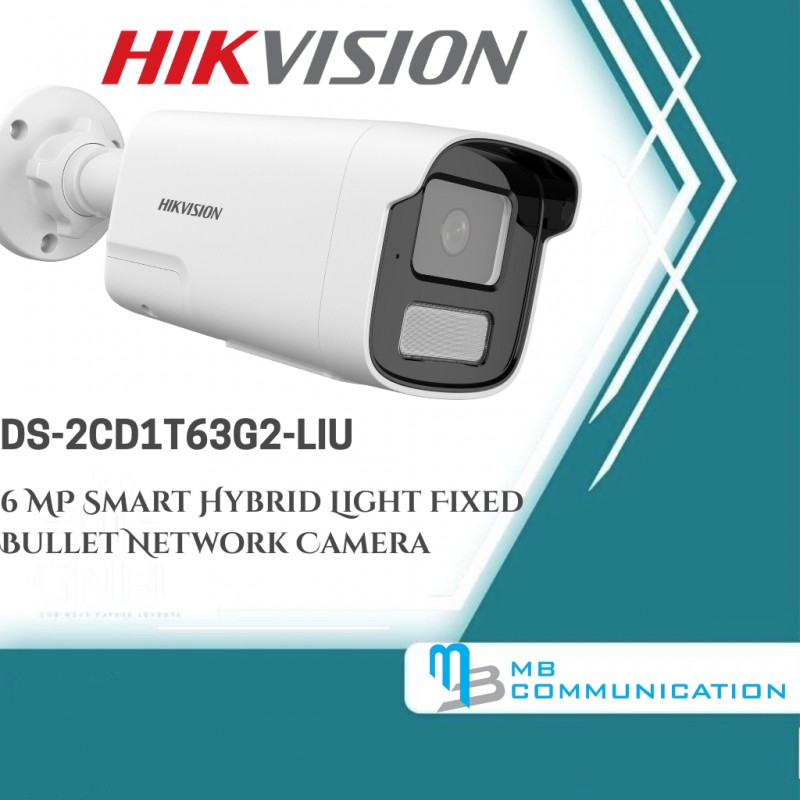

Hikvision DS-2CD1T63G2-LIU
DS-2CD1T63G2-LIU
New product
6 MP Smart Hybrid Light Fixed Bullet Network Camera
- High quality imaging with 6 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
In Stock
WhatsApp
Rating:
Be the first to write a review!
More info
Product Information:
Hikvision DS-2CD1T63G2-LIU Features and Benefits
Features:
Hikvision DS-2CD1T63G2-LIU Description
| Category | Specification |
|---|---|
| Camera | |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–180°, Rotate: 0°–360° |
| Lens | |
| Lens Type | Fixed focal lens, 4 mm / 6 mm optional |
| Focal Length & FOV | 4 mm: H 78°, V 38°, D 96° 6 mm: H 51°, V 26°, D 59° |
| Iris Type | Fixed |
| Lens Mount | M12 |
| Aperture | F1.6 |
| DORI | |
| 4 mm | D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| 6 mm | D: 164 m, O: 65 m, R: 32 m, I: 16 m |
| Illuminator | |
| Range | Up to 50 m |
| Smart Supplement Light | Yes |
| Light Type | IR & White Light |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 20 fps @ (3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720) |
| Sub-Stream | 20 fps @ (1280 × 720 / 640 × 480 / 640 × 360) |
| Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Bit Rate | 32 Kbps–16 Mbps |
| ROI | 1 fixed region (main stream) |
| WDR | 120 dB |
| Audio | |
| Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Sampling Rate | 8 kHz / 16 kHz |
| Noise Filtering | Yes |
| Audio Type | Mono |
| Network | |
| Protocols | TCP/IP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| API | ONVIF (Profile S, T, G), ISAPI, SDK |
| Browser Support | IE 10/11 (plug-in), Chrome 57+, Firefox 52+, Edge 89+ |
| Users | Up to 32 (Admin/Operator/User) |
| Image Features | Rotate, BLC, HLC, 3D DNR, Brightness, Contrast, Privacy Masks (4) |
| Interface | |
| On-Board Storage | MicroSD up to 512 GB (-F model) |
| Ethernet | 1 × RJ45 10/100M |
| Microphone | Built-in |
| Reset Key | Yes (-F model) |
| Events | Motion detection, video tampering, exception, flying object alarm |
| General | |
| Power | 12 VDC ±25%, PoE IEEE 802.3af, Max 7.5 W |
| Material | Metal & Plastic |
| Dimensions | 83.7 × 80.7 × 205.6 mm |
| Package Dimensions | 260 × 125 × 125 mm |
| Weight | 580 g (Net), 635 g (With package) |
| Protection | IP67 |
| Operating Temp | -30 °C to 60 °C, ≤95% RH |
| Certifications | CE, UL, BIS, RCM, IC, RoHS, WEEE, Reach |
