View larger
DS-2TD95C8-190ZK2FL/W
Thermal & Optical Bi-spectrum Network Sphere Positioning System
- Perimeter protection based on intelligent human/vehivle/vessel classification algorithm: line crossing, intrusion, region entrance and exit
- Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
- 1280 × 1024 resolution 12 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.0)
- Fire detection and smoke detection algorithm
- Smart wiper, automatically turns on when it rains
- High quality detector with 10 years guarantee
Rating:
Be the first to write a review!
- 100% genuine, brand-new stock
- Delivered across Pakistan
- Showroom: TechnoCity, Karachi
- Bulk & corporate pricing on request
More info
DS-2TD95C8-190ZK2FL/W overview

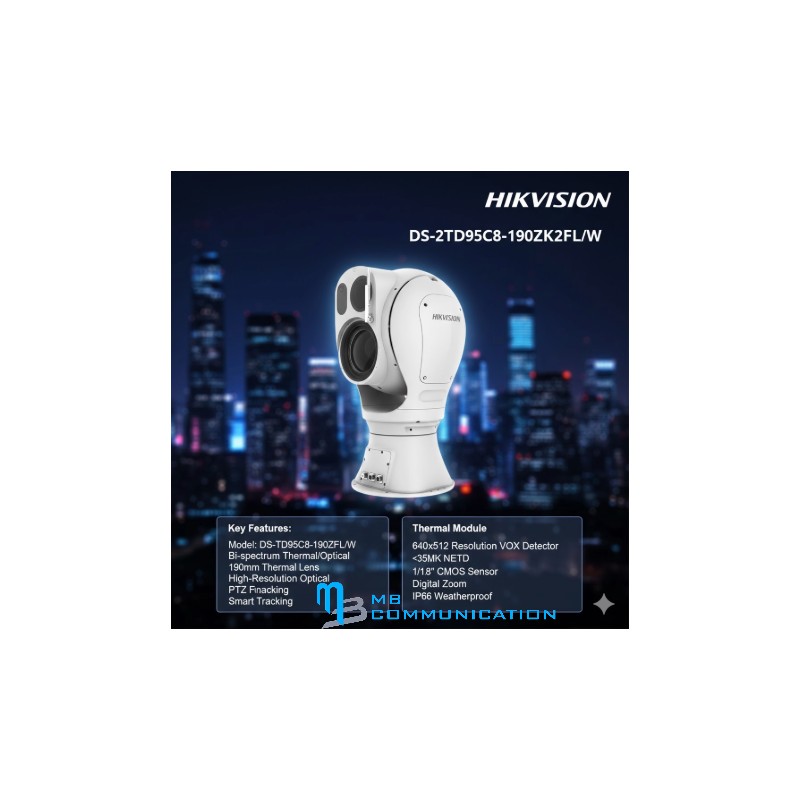

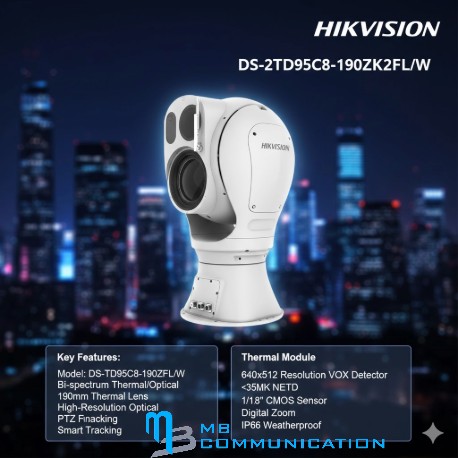

Hikvision DS-2TD95C8-190ZK2FL/W - Thermal & Optical Bi-spectrum Network Sphere Positioning System.
Key Features
- Perimeter protection based on intelligent human/vehivle/vessel classification algorithm: line crossing, intrusion, region entrance and exit
- Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
- 1280 × 1024 resolution 12 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.0)
- Fire detection and smoke detection algorithm
- Smart wiper, automatically turns on when it rains
- High quality detector with 10 years guarantee
- NEMA-4X Standard, Anti-corrosion coating
Specifications
| Thermal Module | |
|---|---|
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Resolution | 1280 × 1024 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | Less than 35 mK (@ 25 °C,F# = 1.0) |
| Focal Length | 38 to 190 mm |
| Focus Mode | Semi-auto & Manual |
| IFOV | 0.33 to 0.06 mrad |
| Aperture | F0.88 to F1.2 |
| Field of View | 24.4° × 19.6° (H × V) to 4.6° × 3.7° (H × V) |
| Min. Focusing Distance | 4 m |
| Digital Zoom | ×2, ×4, ×8 |
| Optical Module | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Resolution | 1920 × 1080, 2 MP |
| Min. Illumination | Color: 0.005 Lux @ (F3.5, AGC ON), B/W: 0.0005 Lux @ (F3.5, AGC ON) |
| Field of View | 31.2° × 17.8° (H × V) to 0.41° × 0.23° (H × V) |
| Focal Length | 10 to 1000 mm, 100x |
| Aperture (Range) | F3.0 to F11.5 |
| Focus Mode | Semi-auto & Manual |
| Digital Zoom | ×2, ×4, ×8, ×16 |
| Shutter Speed | 1 s to 1/30,000 s |
| WDR | 120 dB |
| Optical Defog | Yes |
| Image Effect | |
| Picture in Picture | Display partial image of thermal channel on the full screen of optical channel |
| Target Coloration | Supported in white hot and black hot mode |
| Image Stabilization | Thermal channel: Built-in gyroscope to improve EIS performance(conflicted with intelligent function)； Optical channel：Optical Image Stabilization (OIS) |
| PTZ | |
| Movement Range | Pan: 360° Continuous Rotate; Tilt: From -45° to + 45° (auto flip) |
| Pan Speed | Configurable, From 0.01°/s to 120°/s, Preset Speed: 120°/s |
| Tilt Speed | Configurable, From 0.01°/s to 80°/s, Preset Speed: 80°/s |
| Proportional Zoom | Yes |
| Presets | 300 in total, 273 are configurable. |
| Patrol Scan | 8; Up to 256 Presets Per Patrol |
| Pattern Scan | 4; More Than 10 Minutes Per Pattern |
| Power Off Memory | Yes |
| Park | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PT Status | Turn On/Turn Off |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output |
| Illuminator | |
| IR Distance | Laser 3,000 m |
| IR Intensity and Angle | Automatically adjusted |
| Smart Function | |
| Basic Event | motion detection;video tampering alarm;alarm input and output;audio exception detection;scene change detection |
| VCA | Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene |
| Fire Detection | Dynamic fire point detection, up to 10 fire points detectable. |
| Smoke Detection | Up to 16km detection ability with 5m*5m smoke |
| Video and Audio | |
| Main Stream | Optical channel 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) Thermal channel 25 fps (1920 × 1080, 1280 × 1024, 1280 × 960, 1280 × 720, 704 × 576, 640 × 512, 384 × 288) |
| Sub-stream | Optical channel 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 576, 352 × 288) Thermal channel 25 fps (704 × 576, 640 × 512, 384 × 288) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Audio Compression | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM/AAC |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Network Storage | MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| API | ISAPI, HIKVISION SDK, Open Network Video Interface (Profile S, Profile G, Profile T) |
| Simultaneous Live View | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 + |
| Interface | |
| Alarm Input | 2-ch inputs (0 to 5 VDC) |
| Alarm Output | 2-ch relay outputs, alarm response actions configurable |
| Alarm Action | Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage |
| Audio Input | 1, 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Audio Output | Linear Level; Impedance: 600 Ω |
| Communication Interface | 1, RJ45 10 M/100 M/1000 M Self-adaptive Ethernet interface. 1, RS-485 interface |
| Analog Output | 1.0 V [p-p]/75 Ω, BNC for thermal channel |
| General | |
| Menu Language | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Power Supply | 48 VDC ± 20%, 4-pin Aviation Connector |
| Power Consumption | 180 W; Max. 460 W with deicing heating |
| Working Temperature/Humidity | From -40°C to 70°C (-40°F to 158°F); Humidity: 90% ± 3% (no condensation) |
| Wiper | Manual & Scheduled & Smart Wiper |
| Protection Level | IP67 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Dimensions | 578.3 mm × 571 mm × 955.7 mm (22.8 " × 22.5 " × 37.6 ") |
Specifications as published by Hikvision for model DS-2TD95C8-190ZK2FL/W.
