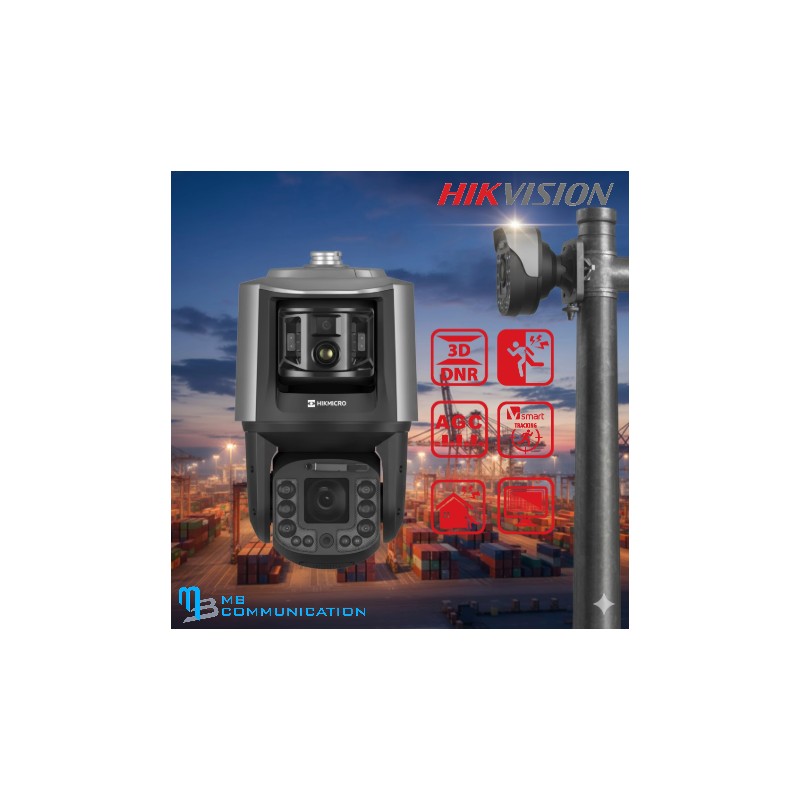

HM-TX3840-25/G0/T1
Thermal Smart Linkage Tracking System
- 384×288 resolution thermal image, high sensitivity sensor, adjustable contrast
- Thermal image processing: Adaptive AGC, DDE, 3D DNR, NETD＜25 mK (@25 °C,F#=1.0)
- High quality imaging with 4MP optical PTZ and 40X optical zoom
- Multi-lens synergy within integrated design provide easy deployment
- Built-in speakers to provide audible alarms and LED to provide whitelight supplement
Rating:
Be the first to write a review!
- 100% genuine, brand-new stock
- Delivered across Pakistan
- Showroom: TechnoCity, Karachi
- Bulk & corporate pricing on request
More info
HM-TX3840-25/G0/T1 overview
Hikvision HM-TX3840-25/G0/T1 - Thermal Smart Linkage Tracking System.
Key Features
- 384×288 resolution thermal image, high sensitivity sensor, adjustable contrast
- Thermal image processing: Adaptive AGC, DDE, 3D DNR, NETD＜25 mK (@25 °C,F#=1.0)
- High quality imaging with 4MP optical PTZ and 40X optical zoom
- Multi-lens synergy within integrated design provide easy deployment
- Built-in speakers to provide audible alarms and LED to provide whitelight supplement
Specifications
| Illuminator | |
|---|---|
| Light Supplement | Up to 250m whitelight supplement |
| Smart Function | |
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
| System Function | |
| Click Linkage | One-Touch automatically calibration |
| Tracking Mode | Manual/Auto |
| Event Tracking | Intrusion Detection, Line Crossing Detection |
| Bullet Camera- Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 384 x 288 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD (Noise Equivalent Temperature Difference) | < 25 mK (25°C, F1.0) |
| Focal Length | 25 mm |
| IFOV | 0.48 mrad |
| Field of View | 11.2° × 8.6° (H × V) |
| Min. Focusing Distance | 8 m |
| Aperture | F1.0 |
| Digital Zoom | x2, x4, x8 |
| Bullet Camera- Optical Module | |
| Image Sensor | 1/1.8”CMOS |
| Resolution | 2688 × 1520 |
| Focal Length | 12.4 mm |
| Field of View | 24.6° × 14.1° (H × V) |
| Min. Illumination | Color: 0.005 Lux @ (F1.5, AGC ON) |
| Aperture | F1.5 |
| Bullet Camera- General | |
| Main Stream | Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-stream | Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) |
| Video Compression | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG |
| Audio Compression | G.711ulaw/G.711alaw/G.726/MP2L2/AAC |
| Alarm Input | 2-ch inputs (0-5 VDC) |
| Alarm Output | 2-ch relay outputs, alarm response actions configurable |
| Audio Input | 1-ch, Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Audio Output | 1-ch, Linear Level; Impedance: 600 Ω |
| Communication Interface | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface 1, BNC 1.0 V [p-p]/75 Ω video output |
| Optical Speed Dome | |
| Image Sensor | 1/1.8'' progressive scan CMOS |
| Resolution | 2688 x 1520 |
| Min. Illumination | Color: 0.0003 Lux @(F1.3, AGC ON), 0 Lux with light on |
| Focal Length | 6 - 240mm, 40 × optical zoom |
| Field of View | 59°(H)*34.16°(V)-1.77°(H)*1.0°(V) |
| Digital Zoom | ×2, ×4, ×8, ×16 |
| Aperture Range | F1.3-F4.6 |
| Focus Mode | Auto/Semi-auto/Manual |
| WDR | 120 dB |
| Optical Defog | Yes |
| Image Enhancement | 3D DNR, EIS, HLC/BLC |
| Pan Speed | configurable from 1° to 160°/s |
| Tilt Speed | configurable from 1°/s to 90°/s |
| Main Stream | 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120) 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144) |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Network Storage | MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| API | ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G) |
| Simultaneous Live View | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 + |
| General | |
| Power Supply | DC36V,AC24V,PoE++ |
| Power Consumption | Max. 90W |
| Working Temperature/Humidity | -40 °C to +70 °C (- 40 °F to 149 °F), Humidity: 90% or less |
| Protection Level | IP67 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Dimensions | 458.7mm x 266.6mm x 290mm |
| Detection Range Table/Smart Function Range | |
| VCA Range for Humans | 250m |
| VCA Range for Vehicles | 750m |
Specifications as published by Hikvision for model HM-TX3840-25/G0/T1.
