  8. Hikvision DS-2CD1047G2-L

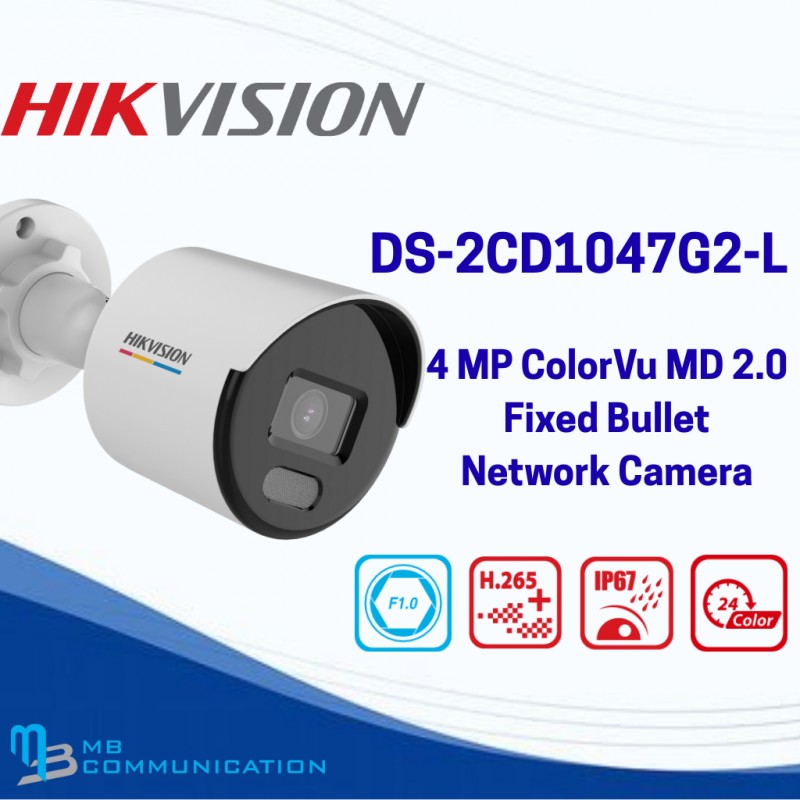

Hikvision DS-2CD1047G2-L View larger

Hikvision DS-2CD1047G2-L

DS-2CD1047G2-L

New product

4 MP ColorVu MD 2.0 Fixed Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • 24/7 colorful imaging
  • Support Human and Vehicle Detection
  • Water and dust resistant (IP67)
  • Clear imaging even with strong back lighting due to 120 dB WDR

More details

In Stock

Whatsapp MB WhatsApp

Rs 15,080

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1047G2-L Features and Benefits

Features:

Hikvision DS-2CD1047G2-L Description

CategorySpecification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night 24/7 color imaging
Angle Adjustment Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°
Lens
Lens Type Fixed focal lens (2.8 mm & 4 mm optional)
Focal Length & FOV 2.8 mm: H 96°, V 52°, D 113°4 mm: H 75°, V 40°, D 89°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
Depth of Field 2.8 mm: 2 m–∞4 mm: 2.7 m–∞
DORI 2.8 mm: D 64 m, O 25 m, R 12 m, I 6 m4 mm: D 82 m, O 32 m, R 16 m, I 8 m
Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Video
Main Stream 50Hz: 20 fps (2560×1440), 25 fps (1080p, 720p)60Hz: 20 fps (2560×1440), 24 fps (1080p, 720p)
Sub Stream 50Hz: 25 fps (720p, 640×480, 640×360)60Hz: 24 fps (720p, 640×480, 640×360)
Video Compression H.265+/H.265/H.264+/H.264, MJPEG
Video Bitrate 32 Kbps–8 Mbps
Profiles H.264: Baseline/Main/HighH.265: Main Profile
Bitrate Control CBR, VBR
ROI 1 fixed region (main stream)
Audio (-U models)
Audio Type Mono sound
Noise Filtering Yes
Sampling Rate 8 kHz / 16 kHz
Compression G.711ulaw/alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC
Bitrate 16–160 Kbps (codec dependent)
Network
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Live View Up to 6 channels
API ONVIF (Profile S/T/G), ISAPI, SDK
Users Up to 32 (admin/operator/user)
Security Password protection, watermark, HTTPS auth, audit log, host auth (MAC)
Client iVMS-4200, Hik-Connect
Browser Support IE 10/11 (plugin), Chrome 57+, Firefox 52+
WDR 120 dB
SNR ≥ 52 dB
Day/Night Switch Day/Night/Auto/Schedule
Enhancement BLC, HLC, 3D DNR
Settings Rotate, saturation, brightness, contrast, sharpness, gain, white balance
Privacy Mask Up to 4 programmable masks
Interface
Ethernet 1× RJ45 10/100M
On-Board Storage MicroSD/SDHC/SDXC, up to 256 GB
Built-in Mic Yes (-U models)
Reset Key Yes (-F models)
Event
Basic Event Motion detection, tamper, exception
Linkage FTP upload, memory card, email, trigger recording/capture
General
Power 12 VDC ±25%, PoE (802.3af, Class 3), Max. 6.5 W
Material Aluminum alloy body
Dimensions Ø76.6 × 164.4 mm (Ø3 × 6.5")
Package Dimensions 234 × 120 × 117 mm (9.2" × 4.7" × 4.6")
Weight Net: 410–430 g (0.9 lb)With package: 630–650 g (1.4 lb)
Storage Conditions -30 °C to 60 °C, ≤95% RH
Operating Conditions -30 °C to 60 °C, ≤95% RH
Language English, Ukrainian
Functions Heartbeat, anti-banding, mirror, password protection, reset via email
Approvals
EMC FCC, CE-EMC, RCM, KC
Safety UL, CB, CE-LVD, BIS
Environment CE-RoHS, WEEE, REACH
Protection IP67
